Diagrams Gallery¶

Architecture diagrams for all migration paths.

Common Architecture¶

Simple Two-Hop Pattern¶

Tool-neutral architecture for documentation overviews:

Simple two-hop pattern

Nutanix AHV/ESXi (Source) → Hyper-V Staging (Intermediate) → Azure Local (Target)

Common Two-Hop DrawIO Source¶

diagrams/common/migration-diagrams-common-two-hop.drawio

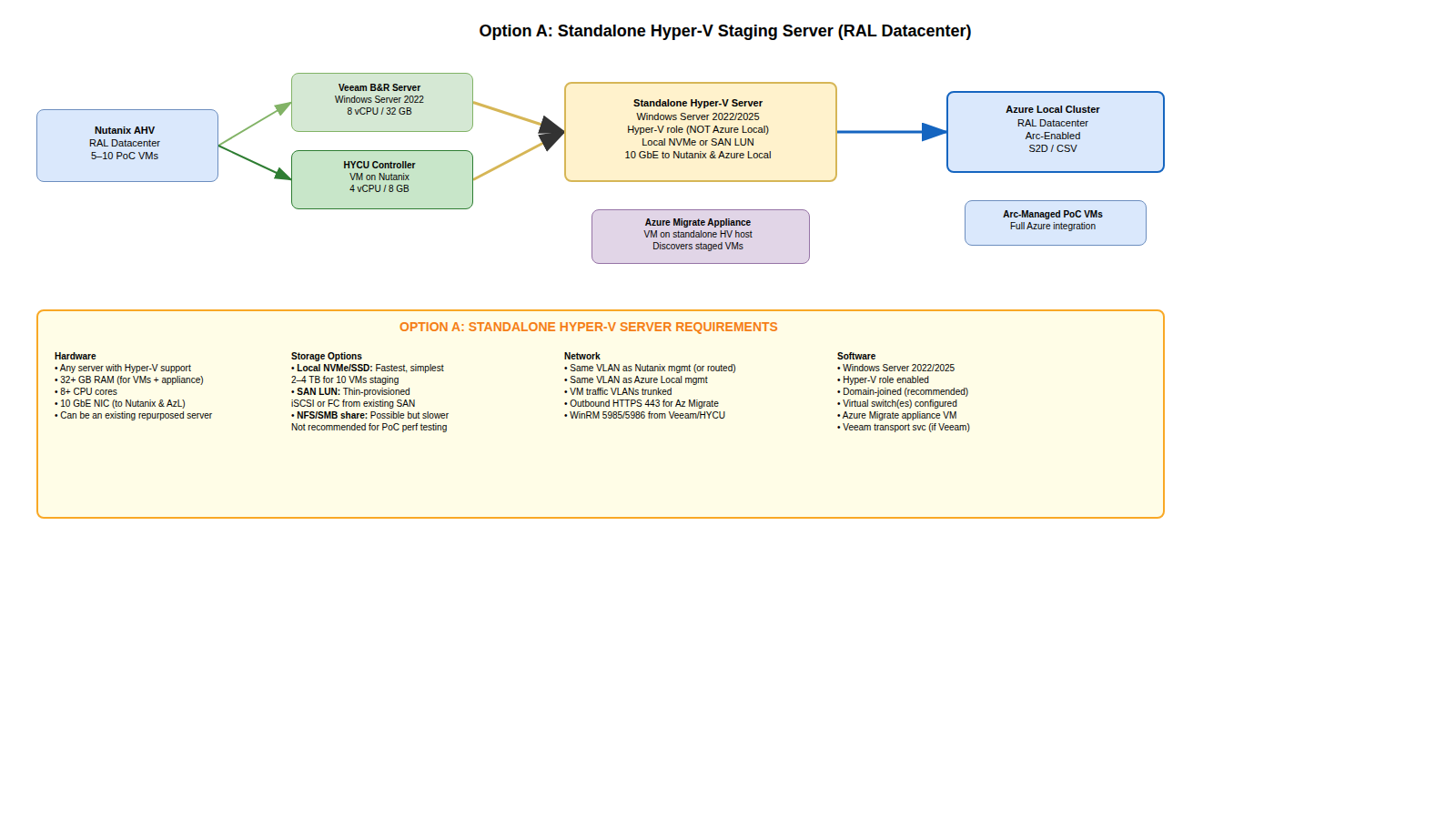

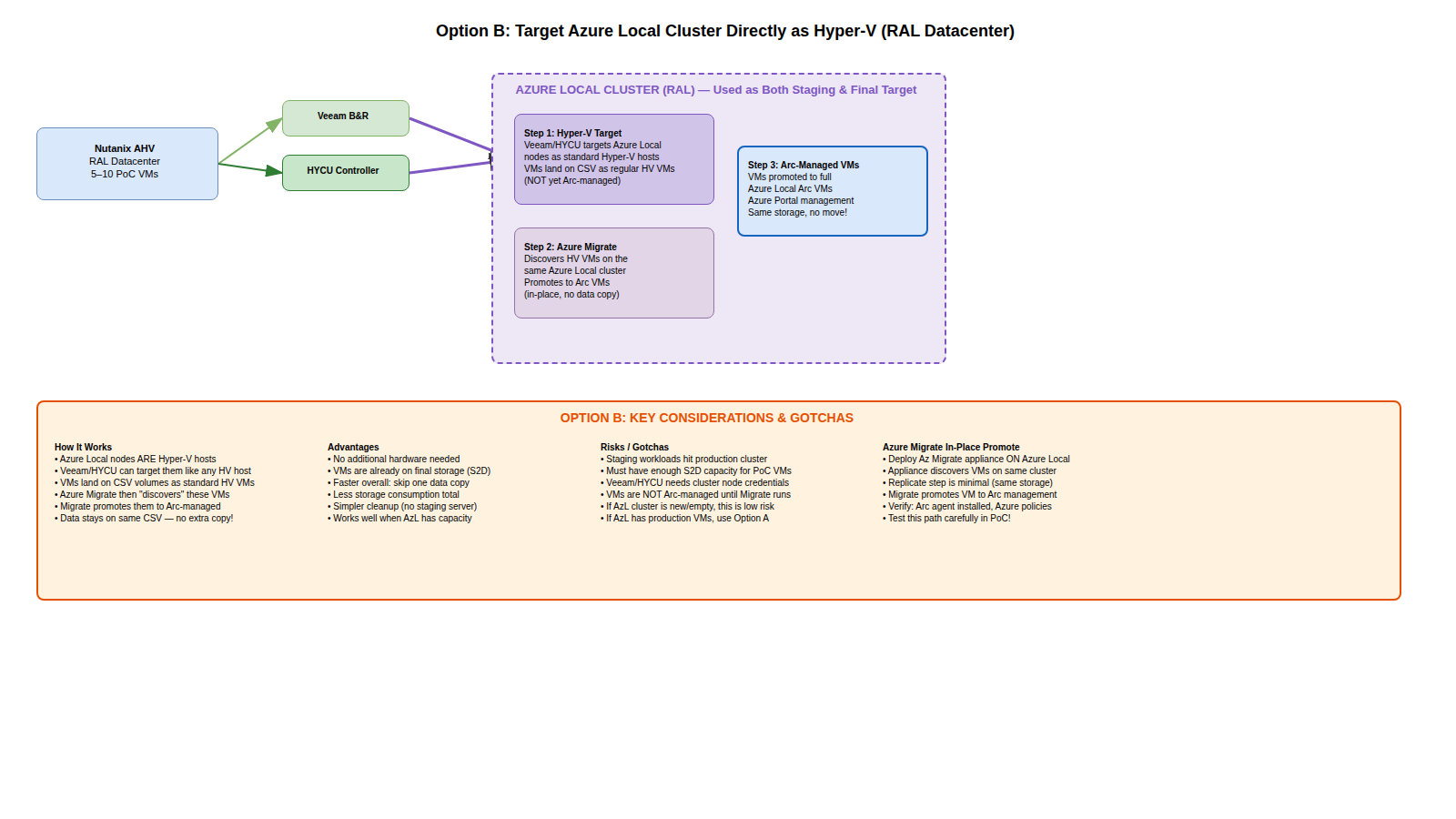

Detailed Two-Hop Architecture¶

Detailed two-hop architecture

diagrams/common/migration-diagrams-common-two-hop-detailed.drawio

Migration Phases Overview¶

Migration phases overview

diagrams/overview/migration-diagrams-phases-overview.drawio

Tool Selection Flow¶

Tool selection flow

diagrams/overview/migration-diagrams-tool-selection-flow-four-path.drawio

Veeam Migration Path¶

Scenario page detailed architecture¶

Veeam scenario detailed architecture

Scenario-page component diagram: source Nutanix estate, Veeam B&R control plane, Hyper-V staging, Azure Migrate appliance, and Azure Local destination.

diagrams/scenarios/01-veeam-architecture-detailed.drawio

High-Level Architecture¶

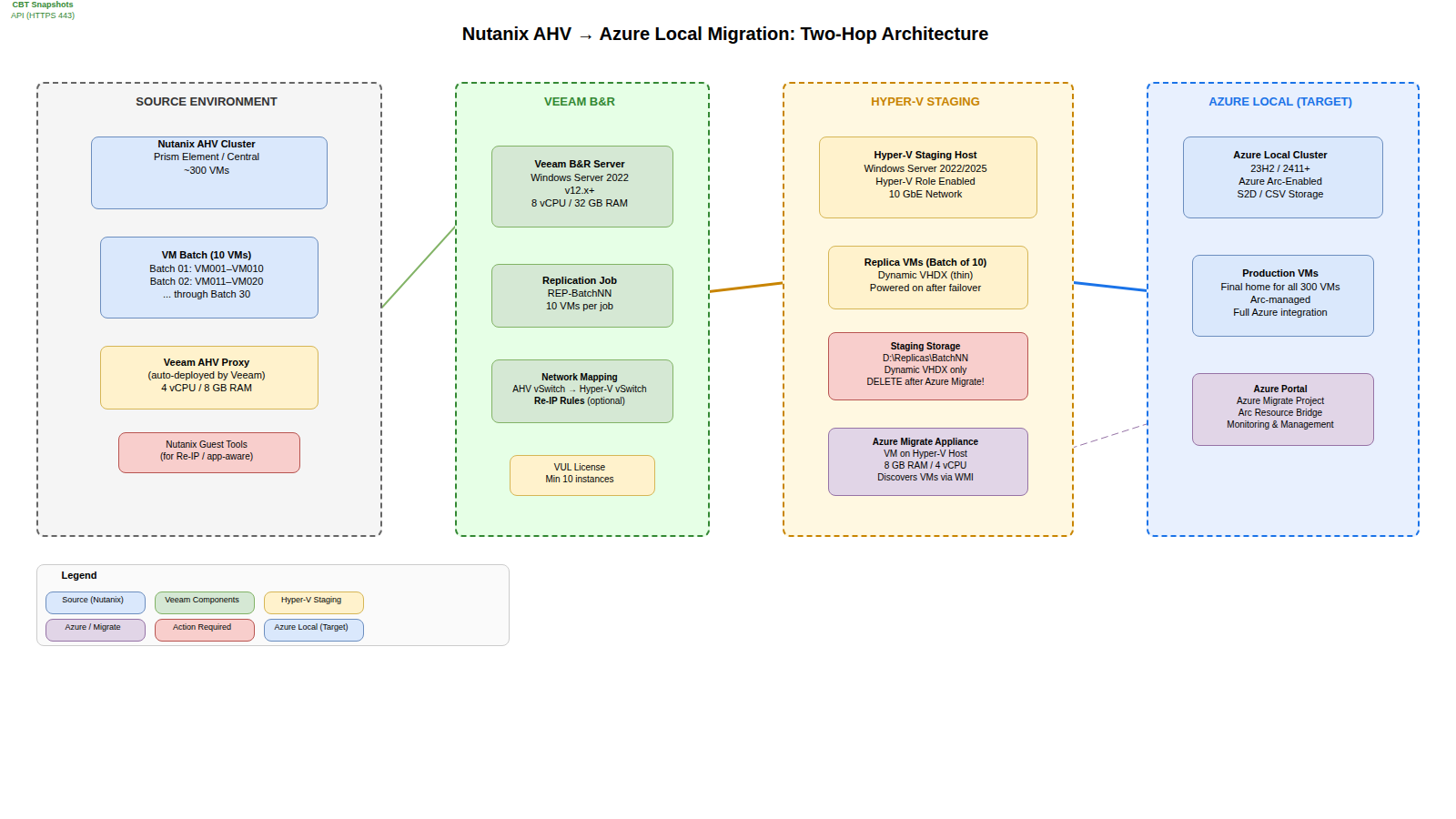

Veeam high-level architecture

Two-hop architecture: Nutanix AHV/ESXi → Veeam replication → Hyper-V staging → Azure Migrate → Azure Local.

Batch Pipeline Flow¶

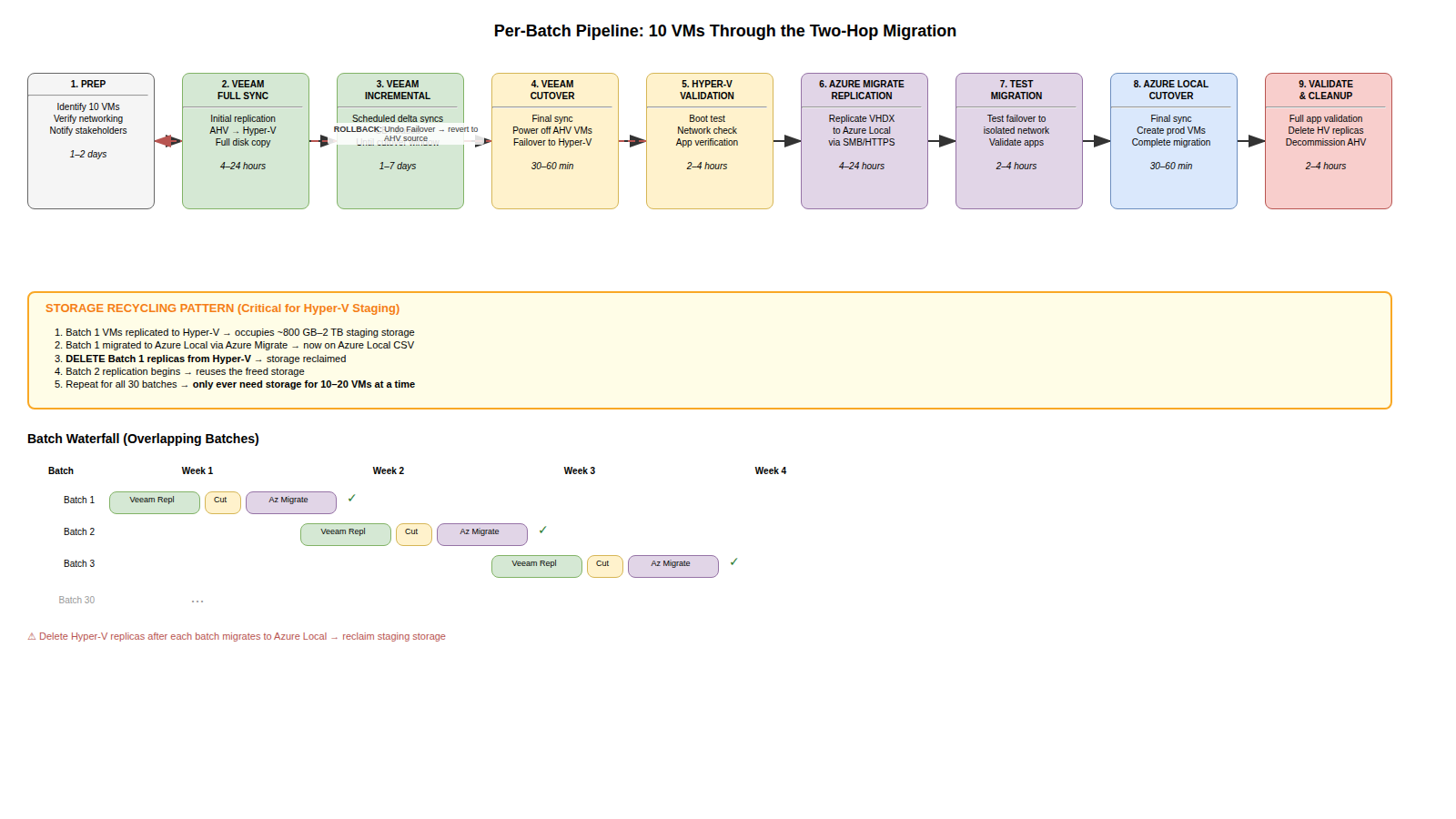

Veeam batch pipeline flow

Sequential batch execution — 10 VMs per batch, Hop 1 cutover before Hop 2 begins.

Veeam Setup Detail¶

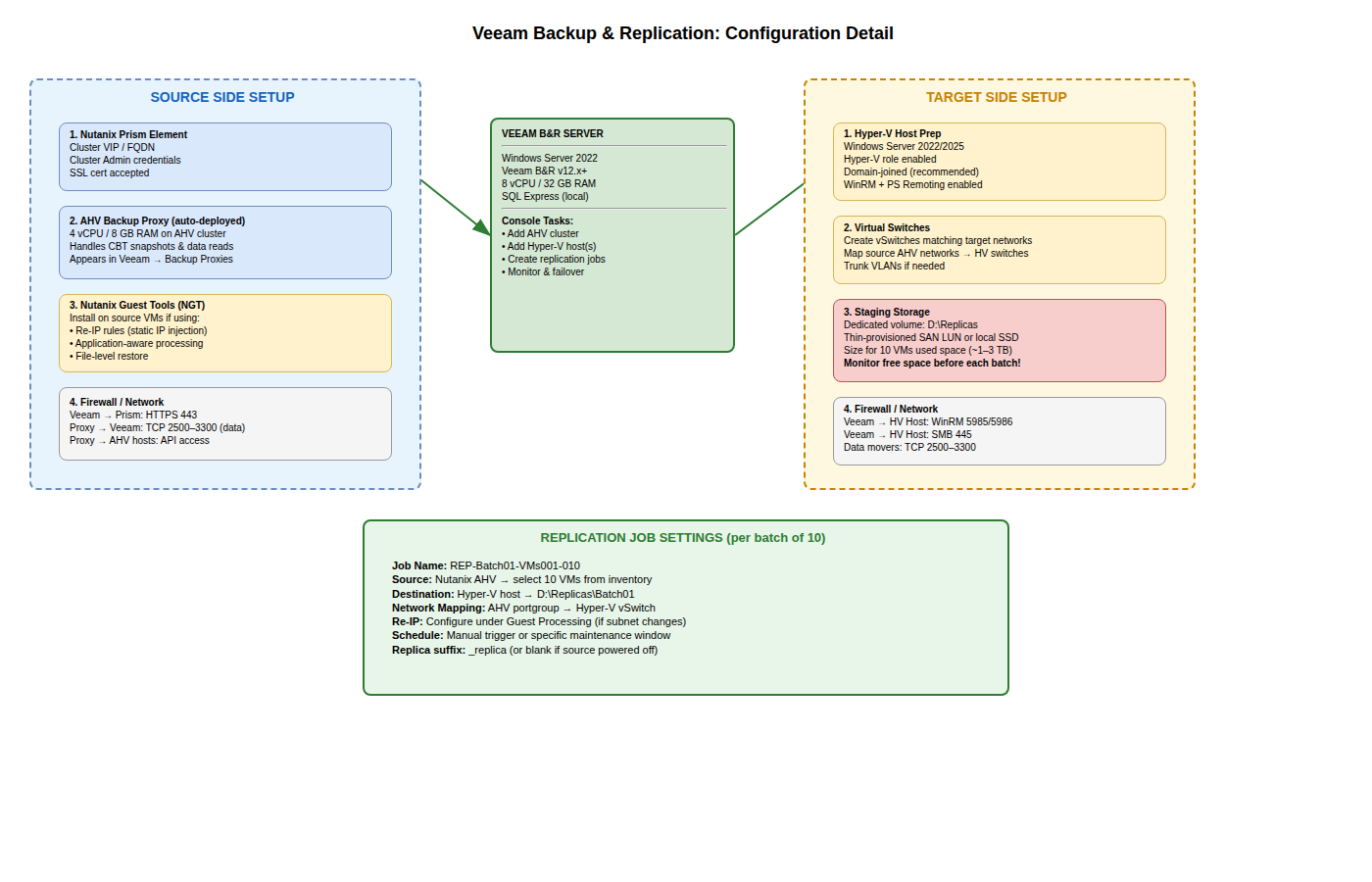

Veeam setup detail

Detailed component diagram: Veeam server, AHV proxy VM, replication jobs, Hyper-V target.

Azure Migrate Workflow¶

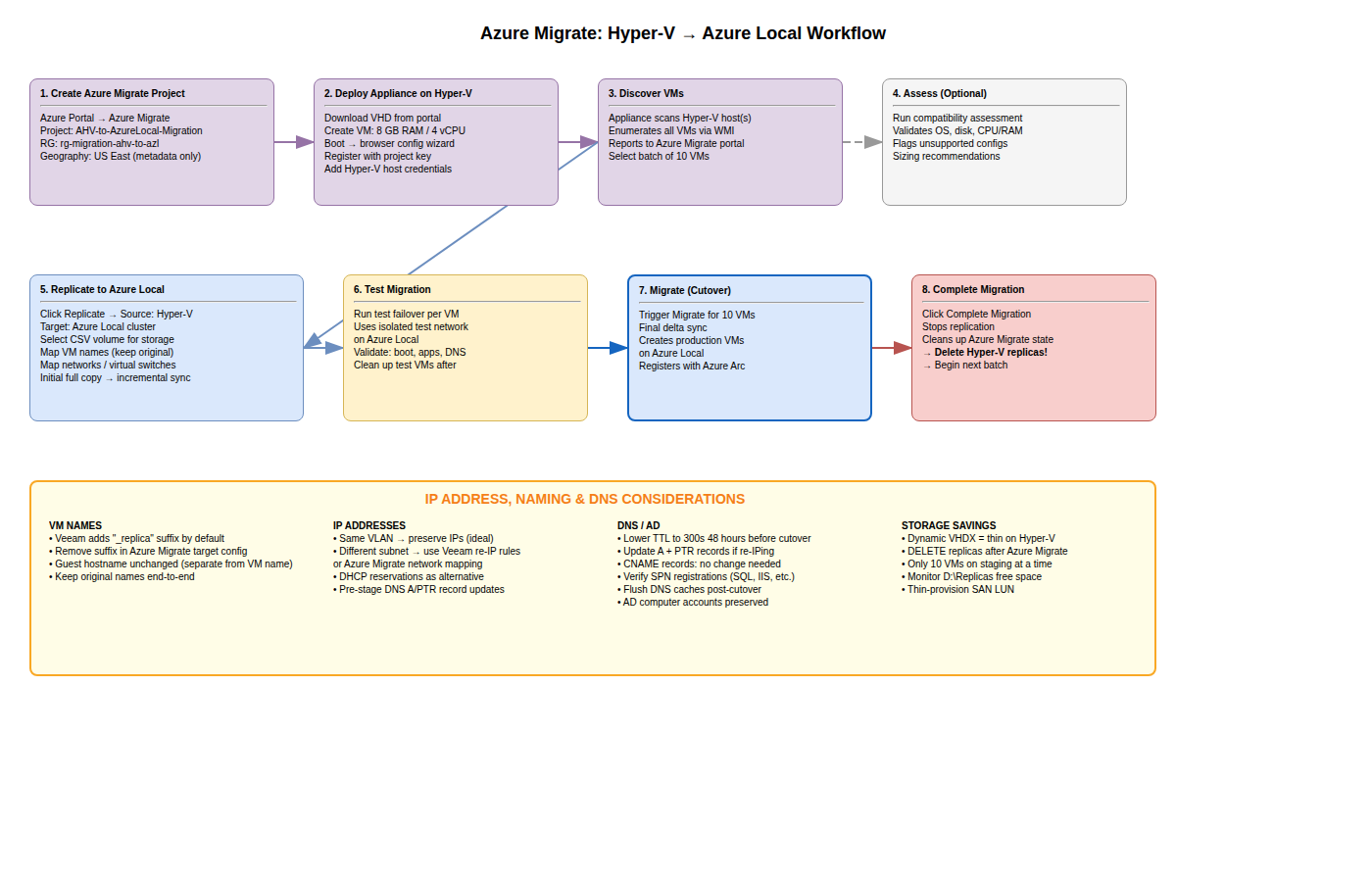

Azure Migrate workflow

Azure Migrate: appliance discovery → replication → test migration → production cutover → Azure Local VMs.

Veeam DrawIO Source¶

The editable DrawIO source for all Veeam diagrams:
diagrams/veeam/migration-diagrams-veeam.drawio

HYCU Migration Path¶

Scenario page detailed architecture¶

HYCU scenario detailed architecture

Scenario-page component diagram: Nutanix source estate, HYCU controller and backup target, Hyper-V restore landing zone, Azure Migrate appliance, and Azure Local destination.

diagrams/scenarios/02-hycu-architecture-detailed.drawio

HYCU Setup Detail¶

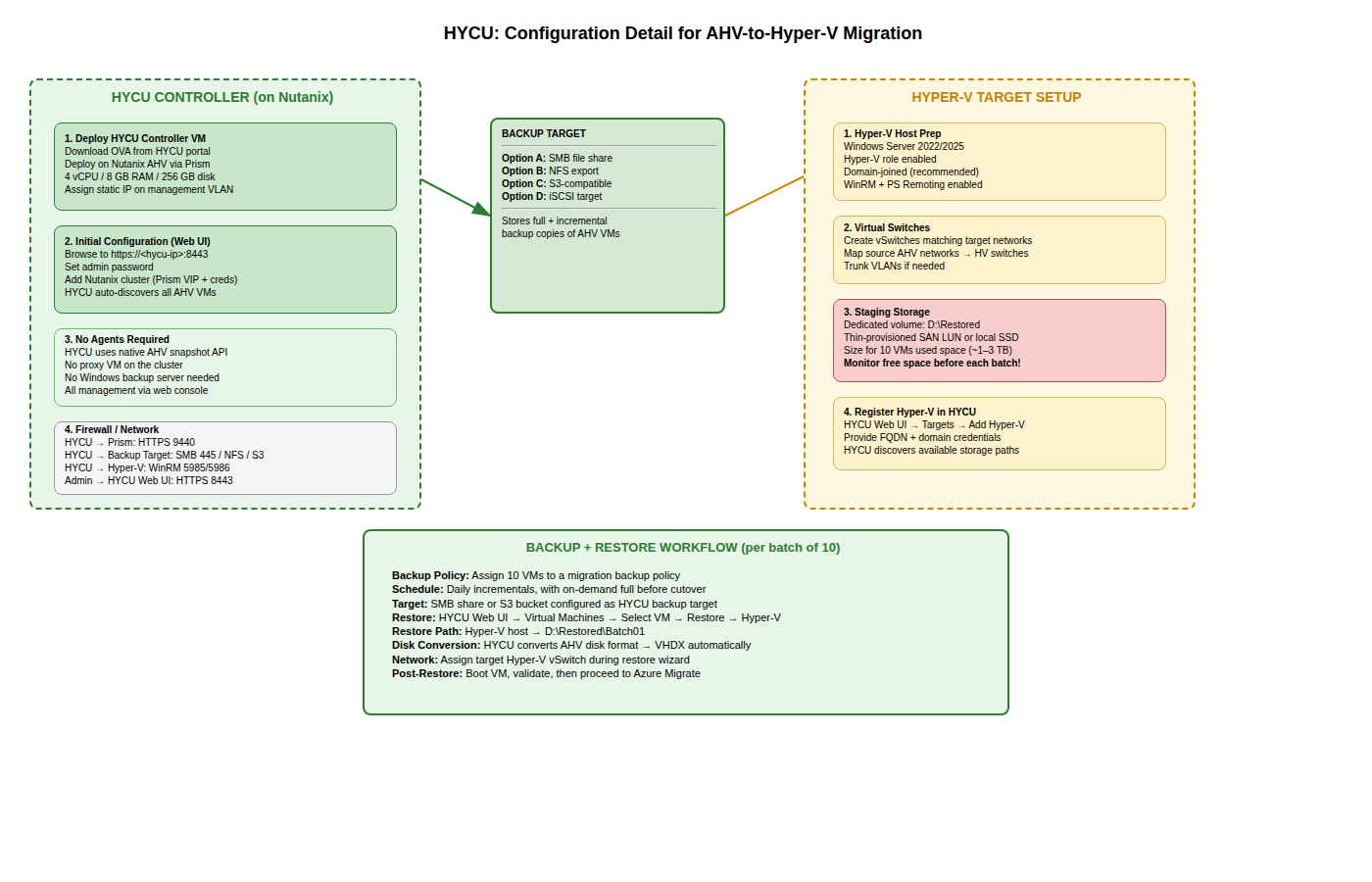

HYCU setup detail

HYCU controller VM on AHV, backup target, Hyper-V restore target, Azure Migrate.

HYCU DrawIO Source¶

diagrams/hycu/migration-diagrams-hycu.drawio

Commvault Migration Path¶

Scenario page detailed architecture¶

Commvault scenario detailed architecture

Scenario-page component diagram: Nutanix source estate, Commvault control and copy layers, Hyper-V staging, Azure Migrate appliance, and Azure Local destination.

diagrams/scenarios/03-commvault-architecture-detailed.drawio

High-Level Architecture¶

Commvault high-level architecture

Two-hop architecture: Nutanix AHV/ESXi → Commvault protected copy → Hyper-V staging → Azure Migrate → Azure Local.

Commvault Setup Detail¶

Commvault setup detail

Control plane, media or worker components, protected storage, Hyper-V staging target, and Azure Migrate handoff.

Commvault DrawIO Source¶

diagrams/commvault/migration-diagrams-commvault.drawio

Deploy-First Migration Path¶

Scenario page detailed architecture¶

Deploy-First scenario detailed architecture

Scenario-page component diagram: build-first Azure Local target VM, direct migration methods, and no intermediate Hyper-V staging layer in the primary flow.

diagrams/scenarios/04-deploy-first-architecture-detailed.drawio

Architecture Overview¶

The editable draw.io source (open in app.diagrams.net):
assets/diagrams/migration-diagrams-deploy-first.drawio

Page 1 — Architecture: Carbonite-based OS-level replication variant inside the broader Deploy-First path. Shows source Nutanix VM → Carbonite → pre-provisioned Azure Local target VM. Contrasts with the Veeam/HYCU/Commvault two-hop pattern (no Hyper-V staging host required).

Page 2 — Migration Steps: Eight-step swimlane — Provision target VM, install agents, create job, initial mirror, continuous replication, test failover, cutover, validate and cleanup. Includes timeline bar and when-to-use / when-not-to-use callouts.
