Connecting to a Cluster

Connect-S2DCluster establishes the CIM and PowerShell sessions that every other collector and report command uses. All subsequent commands in the session reuse these sessions — you connect once and then call whatever collectors you need.

Domain-JoinedNon-Domain-JoinedLocal NodeKey Vault (Unattended)

The most common scenario. Your management machine is joined to the same domain (or a trusted domain) as the cluster nodes.

# Prompt for credentials
Connect-S2DCluster -ClusterName "c01-prd-bal" -Credential (Get-Credential)

# Or pass a pre-built credential object
$cred = New-Object PSCredential("CONTOSO\ClusterAdmin", $securePass)
Connect-S2DCluster -ClusterName "c01-prd-bal" -Credential $cred

ClusterName accepts both short names (c01-prd-bal) and FQDNs (c01-prd-bal.contoso.com). When a short name is provided, S2DCartographer resolves the cluster IP via DNS and connects to the first available node.

Use -Verbose for connection details

Connect-S2DCluster -ClusterName "c01-prd-bal" -Credential $cred -Verbose shows which node was contacted, the CIM session protocol negotiated, and the S2D pool name discovered.

Management machines outside the cluster's domain — common in lab environments, customer site visits, or cross-domain management.

# Explicit FQDN resolves DNS without Kerberos
Connect-S2DCluster -ClusterName "c01-prd-bal.contoso.com" -Credential (Get-Credential)

NTLM required for non-domain-joined machines

WinRM defaults to Kerberos for domain accounts. From a non-domain-joined machine you need NTLM or CredSSP. Ensure the target cluster nodes have NTLM enabled on their WinRM listener, or pre-configure a trusted hosts entry:

# Run once on your management machine (elevated)
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*.contoso.com" -Force

Certificate-based WinRM

If the cluster uses HTTPS WinRM (port 5986), pass an existing CimSessionOption with -CimSession:

$opt = New-CimSessionOption -UseSsl
$cim = New-CimSession -ComputerName "node01.contoso.com" -Credential $cred -SessionOption $opt
Connect-S2DCluster -CimSession $cim

Run directly on a cluster node — no credentials needed, no network hops, no WinRM configuration required. Useful for automated scripts that run as scheduled tasks on a node.

Connect-S2DCluster -Local

What -Local does

Creates a loopback CIM session (no network) and sets IsLocal = $true in the module session. All collectors still execute the same code paths — only the session transport changes.

Scheduled task pattern

# Runs on a cluster node — no credential storage needed
Import-Module S2DCartographer
Connect-S2DCluster -Local
Invoke-S2DCartographer -Format Html -OutputDirectory "\\fileserver\reports\"
Disconnect-S2DCluster

For automation pipelines and scheduled runs where storing credentials in scripts is not acceptable. Retrieves the cluster admin password from an Azure Key Vault secret.

# Requires: Az.KeyVault module + authenticated Az session (e.g., Managed Identity)
Invoke-S2DCartographer -ClusterName "c01-prd-bal" `
    -KeyVaultName "kv-platform-prod" `
    -SecretName  "c01-prd-bal-admin-password" `
    -Format Html -OutputDirectory "C:\AutoReports\"

Secret format

The Key Vault secret value should be the password only as a plain string. The username defaults to $ClusterName\Administrator. To use a different username, retrieve the secret manually and build your own PSCredential:

$pw  = (Get-AzKeyVaultSecret -VaultName "kv-prod" -Name "cluster-pw").SecretValue
$cred = New-Object PSCredential("CONTOSO\ClusterAdmin", $pw)
Connect-S2DCluster -ClusterName "c01-prd-bal" -Credential $cred

Azure Automation / Managed Identity

From an Azure Automation runbook or an Arc-enabled VM with a Managed Identity, call Connect-AzAccount -Identity before Invoke-S2DCartographer. The module will use the authenticated Az context to call Key Vault.

---

Remoting Prerequisites

Before connecting from a management machine, verify the following:

WinRM

S2DCartographer uses CIM over WinRM (HTTP port 5985 by default). The cluster nodes must have WinRM enabled and listening:

# Run on each cluster node (or via GPO)
Enable-PSRemoting -Force
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*" -Force   # or specific management host IPs

TrustedHosts (non-domain-joined management machines)

If your management machine is not domain-joined, Windows cannot use Kerberos to authenticate the remote host. You must add the cluster FQDN (or a wildcard) to your local TrustedHosts list:

# Run once on your management machine (elevated)
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*.yourdomain.com" -Force

# Or add specific FQDNs
$current = (Get-Item WSMan:\localhost\Client\TrustedHosts).Value
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "$current,tplabs-clus01.azrl.mgmt" -Force

Use FQDNs in TrustedHosts

S2DCartographer resolves short cluster names to FQDNs via DNS before connecting. If you configure TrustedHosts with short names (tplabs-clus01) but the module resolves to an FQDN (tplabs-clus01.azrl.mgmt), the WinRM handshake will fail with 0x8009030e. Always use FQDNs in TrustedHosts.

Resolution order used by Connect-S2DCluster:

1. TrustedHosts — checks if the short name matches a FQDN entry and promotes it
2. DNS (GetHostEntry) — resolves short name to FQDN
3. Short-name pass-through — last resort
4. Precise error with remediation steps if all fail

Firewall

Port	Protocol	Direction	Purpose
5985	TCP	Inbound on nodes	WinRM HTTP (default)
5986	TCP	Inbound on nodes	WinRM HTTPS (optional)

---

Connection & Node Fan-Out Flow

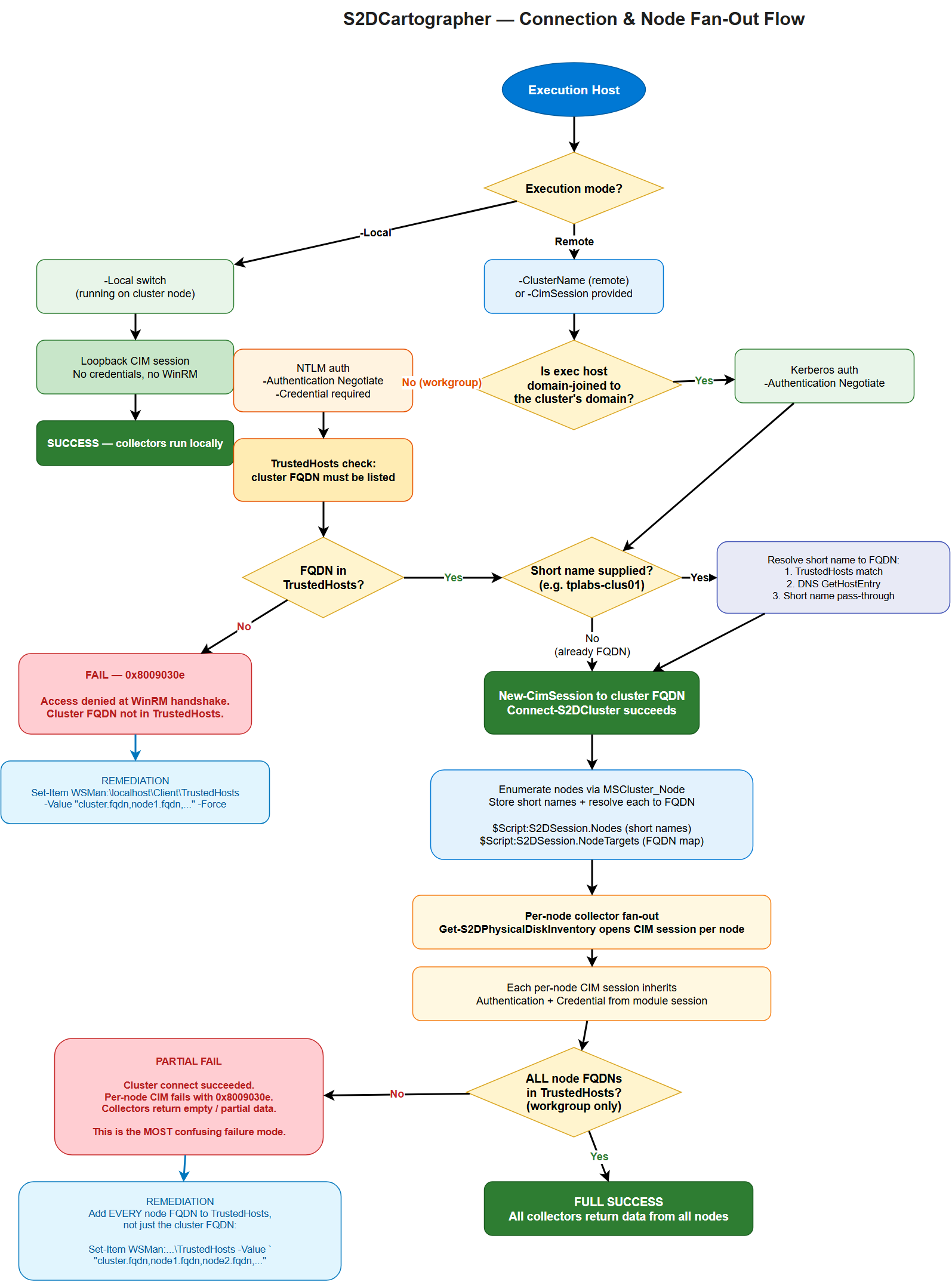

The full connection and per-node fan-out logic is visualized below. Use this diagram to understand why a run can succeed at cluster connect and still fail during node-level collection — the most confusing failure mode S2DCartographer produces.

Open source .drawio file

Stage-by-stage explanation

1. Execution host — where you run Invoke-S2DCartographer or Connect-S2DCluster. Can be a cluster node (-Local), a domain-joined management server, or a workgroup / non-domain-joined laptop.
2. Execution mode branch:
   • -Local → loopback CIM session is created, no WinRM, no credentials needed. Collectors run immediately.
   • Remote → enters the authentication path.
3. Domain-joined vs workgroup:
   • Domain-joined → Kerberos via -Authentication Negotiate. No TrustedHosts required.
   • Workgroup → NTLM via -Authentication Negotiate. -Credential is required and the cluster FQDN must be in TrustedHosts.
4. Short-name resolution — if the caller passed a short name (tplabs-clus01), Connect-S2DCluster resolves it to an FQDN before connecting. Resolution order: TrustedHosts → DNS → short-name pass-through. If this fails you will see 0x8009030e at New-CimSession.
5. Cluster connect — New-CimSession opens against the cluster FQDN. On success, $Script:S2DSession.IsConnected = $true.
6. Node enumeration — the module queries MSCluster_Node via the cluster session to get the list of member nodes. Short names are stored in $Script:S2DSession.Nodes; each is resolved to an FQDN and stored in $Script:S2DSession.NodeTargets.
7. Per-node fan-out — collectors like Get-S2DPhysicalDiskInventory open a new CIM session per node against the FQDN target. Each inherits Authentication + Credential from the module session.
8. Node-level TrustedHosts check — workgroup hosts need every node FQDN in TrustedHosts, not just the cluster FQDN. This is the most common cause of "cluster connects but collectors return empty" failures.

Authentication inheritance

All per-node CIM sessions inherit the Authentication method and Credential from the module session established at connect time. You do not need to pass credentials again for per-node calls — the session state carries them automatically.

Why short names vs FQDNs matter

WinRM negotiates authentication based on the target hostname. A short name that resolves via DNS to an FQDN will negotiate Kerberos; but if TrustedHosts is configured with FQDNs (the typical pattern on workgroup hosts), WinRM compares the requested hostname (short) against the trusted list (FQDN) and rejects the handshake. S2DCartographer resolves short names to FQDNs before issuing the CIM call specifically to avoid this mismatch.

The module never silently modifies TrustedHosts

Connect-S2DCluster will not write to WSMan:\localhost\Client\TrustedHosts on your behalf. TrustedHosts is a security-sensitive setting and modifying it requires deliberate operator action. The module detects the misconfiguration and throws a precise error with remediation steps.

---

Operator Decision Tree

Use this flow when setting up a new management host:

Domain-joined management host (most common)

1. Join the host to the same AD forest as the cluster (or a forest with a trust).
2. Install RSAT: Install-WindowsFeature RSAT-Clustering-PowerShell (or equivalent on Windows 11).
3. Install the S2DCartographer module: Install-Module S2DCartographer -Scope CurrentUser.
4. Connect: Connect-S2DCluster -ClusterName <cluster-fqdn> -Credential (Get-Credential).
5. No TrustedHosts configuration needed. Kerberos handles authentication end-to-end.

Workgroup / non-domain-joined management host (lab, customer-site, laptop)

1. Install the S2DCartographer module: Install-Module S2DCartographer -Scope CurrentUser.

2. Configure TrustedHosts with FQDNs for the cluster and every node (elevated PowerShell):

   Set-Item WSMan:\localhost\Client\TrustedHosts `
       -Value "tplabs-clus01.azrl.mgmt,azl-n01.azrl.mgmt,azl-n02.azrl.mgmt,azl-n03.azrl.mgmt,azl-n04.azrl.mgmt" `
       -Force

   # Or use a wildcard if you trust the entire DNS zone
   Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*.azrl.mgmt" -Force


3. Connect with explicit credentials — Connect-S2DCluster -ClusterName <cluster-fqdn> -Credential (Get-Credential) -Authentication Negotiate.

Local execution on a cluster node (automation / scheduled tasks)

1. Install the module on the cluster node itself (or reference it from a share).
2. Run Connect-S2DCluster -Local. No credentials needed, no WinRM hops.
3. Ideal for scheduled tasks running as SYSTEM or a cluster service account.

Cluster connect succeeds but collectors return empty / fail

This is always a per-node TrustedHosts or per-node firewall issue on workgroup hosts. The cluster FQDN is in TrustedHosts; the node FQDNs are not.

1. Verify every node FQDN is listed in TrustedHosts (see workgroup flow above).
2. Verify WinRM is open between your management host and every node (port 5985 by default).
3. Re-run Invoke-S2DCartographer — node-level CIM sessions will now succeed.

---

Error Interpretation

Error / Symptom	Root cause	Remediation
0x8009030e at New-CimSession	Cluster FQDN is not in TrustedHosts (workgroup host). The WinRM SSPI handshake cannot negotiate auth against an untrusted host.	Add cluster FQDN to TrustedHosts (elevated PowerShell).
The WS-Management service cannot process the request because it contains invalid selectors	Short name resolved incorrectly, or target host's WinRM listener is bound to a different identity than the DNS name used.	Connect with explicit FQDN; verify winrm enumerate winrm/config/listener on the target.
Cluster connects, but Get-S2DPhysicalDiskInventory returns empty or throws on some nodes	Per-node FQDNs missing from TrustedHosts. Cluster-level CIM succeeded but the fan-out per-node sessions are failing silently. This is the partial-success failure mode.	Add every node FQDN to TrustedHosts, not just the cluster FQDN.
Access is denied (0x80070005) with domain credentials on a workgroup host	Credential format wrong — plain username instead of DOMAIN\user or user@fqdn.domain	Pass credentials with a qualified username; the Get-Credential dialog also accepts both formats.
Connecting to remote server <short-name> failed ... The WinRM client cannot process the request.	Short cluster name was passed and DNS resolution failed before the WinRM call.	Pass FQDN explicitly, or confirm the management host's DNS suffix search list includes the cluster's domain.
Kerberos authentication was unable to obtain ticket	Workgroup host attempting Kerberos (no KDC reachable).	Use -Authentication Negotiate (default) so NTLM fallback is allowed.
Could not establish trust relationship for the SSL/TLS secure channel	Using WinRM HTTPS (5986) against a cluster with a certificate not trusted by the management host.	Import the cluster's CA into the management host's Trusted Root store, or connect over HTTP (5985) if the lab allows.

Partial-success failure mode — why it happens

S2DCartographer's connect step uses a single CIM session to the cluster VIP/FQDN. The session enumerates nodes and caches short names. Collectors then create new CIM sessions per node. On a workgroup host, TrustedHosts must contain all FQDNs the module will hit — cluster FQDN AND every node FQDN. If only the cluster FQDN is listed:

• Connect-S2DCluster succeeds (cluster FQDN is trusted)
• Node enumeration succeeds (runs through the existing cluster session — no new CIM call)
• Get-S2DPhysicalDiskInventory fails (opens a new CIM session per node FQDN, which is NOT trusted)

The net effect is a confusing "connected but no data" state. Always add every node FQDN to TrustedHosts on workgroup hosts.

---

Troubleshooting Recipes

Recipe 1 — "I can't connect at all"

# 1. Confirm you can reach WinRM on the cluster FQDN
Test-NetConnection -ComputerName tplabs-clus01.azrl.mgmt -Port 5985

# 2. Confirm DNS resolves the FQDN correctly
Resolve-DnsName tplabs-clus01.azrl.mgmt

# 3. Check TrustedHosts (workgroup hosts only)
Get-Item WSMan:\localhost\Client\TrustedHosts

# 4. Try raw CIM session first — isolates the module from the failure
New-CimSession -ComputerName tplabs-clus01.azrl.mgmt `
    -Credential (Get-Credential) -Authentication Negotiate

Recipe 2 — "Cluster connects but collectors are empty"

# 1. Get the list of node FQDNs the module resolved
Connect-S2DCluster -ClusterName tplabs-clus01.azrl.mgmt -Credential $cred
$Script:S2DSession.NodeTargets

# 2. Add every node FQDN to TrustedHosts
$current = (Get-Item WSMan:\localhost\Client\TrustedHosts).Value
$nodes   = ($Script:S2DSession.NodeTargets.Values -join ',')
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "$current,$nodes" -Force

# 3. Retry
Invoke-S2DCartographer -ClusterName tplabs-clus01.azrl.mgmt -Credential $cred

Recipe 3 — "I want to avoid TrustedHosts entirely"

Run from a cluster node with -Local:

# On the cluster node itself
Import-Module S2DCartographer
Invoke-S2DCartographer -Local

Or run from a domain-joined jump host where Kerberos handles everything.

Recipe 4 — "Credentials keep failing with 'Access denied'"

Cluster credentials must be in DOMAIN\user or user@domain.fqdn form. Plain Administrator or just user will not authenticate against a domain cluster from a non-domain-joined management host.

# Wrong — will fail with 0x80070005
Connect-S2DCluster -ClusterName tplabs-clus01.azrl.mgmt `
    -Credential (New-Object PSCredential("Administrator", $pw))

# Correct
Connect-S2DCluster -ClusterName tplabs-clus01.azrl.mgmt `
    -Credential (New-Object PSCredential("AZRL\ClusterAdmin", $pw))

---

Parameters

Parameter	Type	Description
-ClusterName	string	Cluster name or FQDN. Resolved via DNS.
-Credential	PSCredential	Username and password for authentication.
-CimSession	CimSession	Re-use an existing CIM session.
-PSSession	PSSession	Re-use an existing PS remoting session.
-Local	switch	Connect to the local machine (no credentials).
-KeyVaultName	string	Azure Key Vault name for unattended credential retrieval.
-SecretName	string	Key Vault secret containing the cluster admin password.

---

Disconnecting

Always disconnect when your session is complete to release CIM and PS sessions:

Disconnect-S2DCluster

Disconnect-S2DCluster closes all open sessions and clears the module session cache. Calling it is safe even if no session is active.
