Architecture Overview

This solution deploys a 3-node Scale-Out File Server (SOFS) guest cluster running Storage Spaces Direct (S2D) on Azure Local, purpose-built to host FSLogix profile containers for Azure Virtual Desktop (AVD) session hosts.


Solution Architecture

Three independent design decisions determine the storage topology:

  1. Host volume layout — Place all 3 SOFS VMs on one CSV volume, or one VM per CSV for fault isolation?
  2. Guest S2D mirror level — Two-way mirror (recommended) or three-way mirror?
  3. Guest share model — Triple layout (three S2D volumes, three shares — recommended) or Single layout (one S2D volume, one share)?

Each decision is independent — pick one option from each row and deploy the matching combination. See Storage Design for the full rationale, capacity impact, thin-provisioning warnings, and S2D tuning.

Decision Flowchart

%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#fff', 'primaryTextColor': '#000', 'lineColor': '#666', 'primaryBorderColor': '#666'}}}%%
flowchart TD
    Start(["Choose your topology"]) --> D1{"How many<br/>host CSV volumes?"}
    D1 -->|"Fault isolation<br/>(recommended)"| ThreeVol["<b>Three Volumes</b><br/>One CSV per SOFS VM"]
    D1 -->|"Limited drives<br/>or simplicity"| OneVol["<b>Single Volume</b><br/>All 3 VMs on one CSV"]

    ThreeVol --> D2{"Guest S2D<br/>mirror level?"}
    OneVol --> D2

    D2 -->|"Most environments"| TwoWay["<b>Two-way mirror</b><br/>Stacked resiliency is sufficient"]
    D2 -->|"Maximum resiliency"| ThreeWay["<b>Three-way mirror</b><br/>Higher capacity cost"]

    TwoWay --> D3{"Share model?"}
    ThreeWay --> D3

    D3 -->|"Most environments<br/>(recommended)"| OptB["<b>Triple layout</b><br/>Three S2D volumes + three shares"]
    D3 -->|"Under 50 users<br/>or simplicity"| OptA["<b>Single layout</b><br/>Single S2D volume + single share"]

    style Start fill:#fff,stroke:#666,color:#000
    style D1 fill:#fff,stroke:#e65100,color:#000,stroke-width:2px
    style D2 fill:#fff,stroke:#e65100,color:#000,stroke-width:2px
    style D3 fill:#fff,stroke:#e65100,color:#000,stroke-width:2px
    style ThreeVol fill:#fff,stroke:#2e7d32,color:#000,stroke-width:2px
    style OneVol fill:#fff,stroke:#1565c0,color:#000,stroke-width:2px
    style TwoWay fill:#fff,stroke:#2e7d32,color:#000,stroke-width:2px
    style ThreeWay fill:#fff,stroke:#1565c0,color:#000,stroke-width:2px
    style OptB fill:#fff,stroke:#2e7d32,color:#000,stroke-width:2px
    style OptA fill:#fff,stroke:#1565c0,color:#000,stroke-width:2px

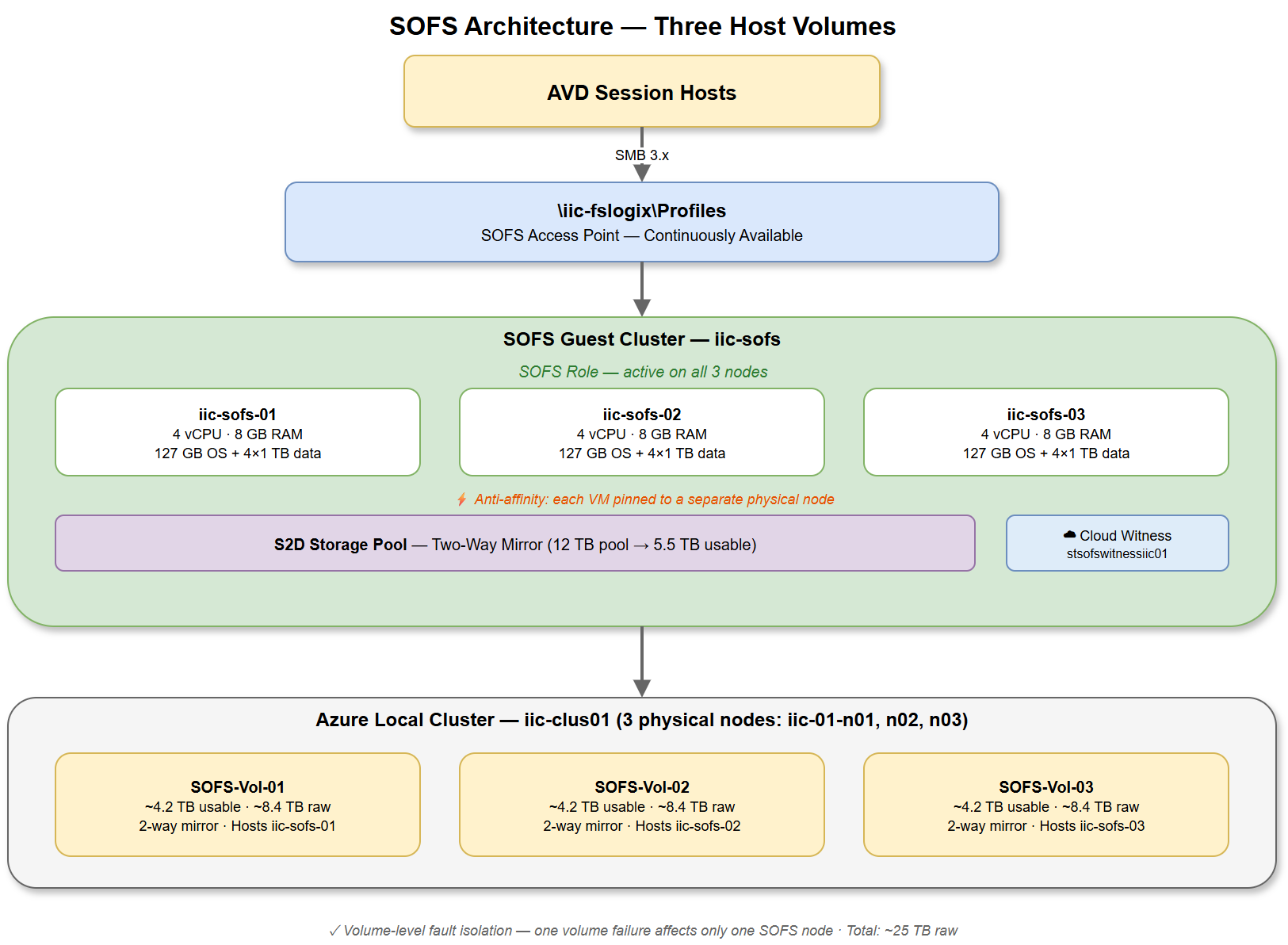

Each SOFS VM resides on its own Azure Local CSV volume. A volume-level failure affects only one VM — the guest S2D cluster survives on the remaining two nodes with zero interruption.

Three host volumes — base layout

Three separate guest S2D volumes (Profiles, ODFC, AppData) with dedicated SMB shares for each. NTFS metadata isolation and independent monitoring — recommended for most environments.

Three host volumes + Triple layout — Three Shares

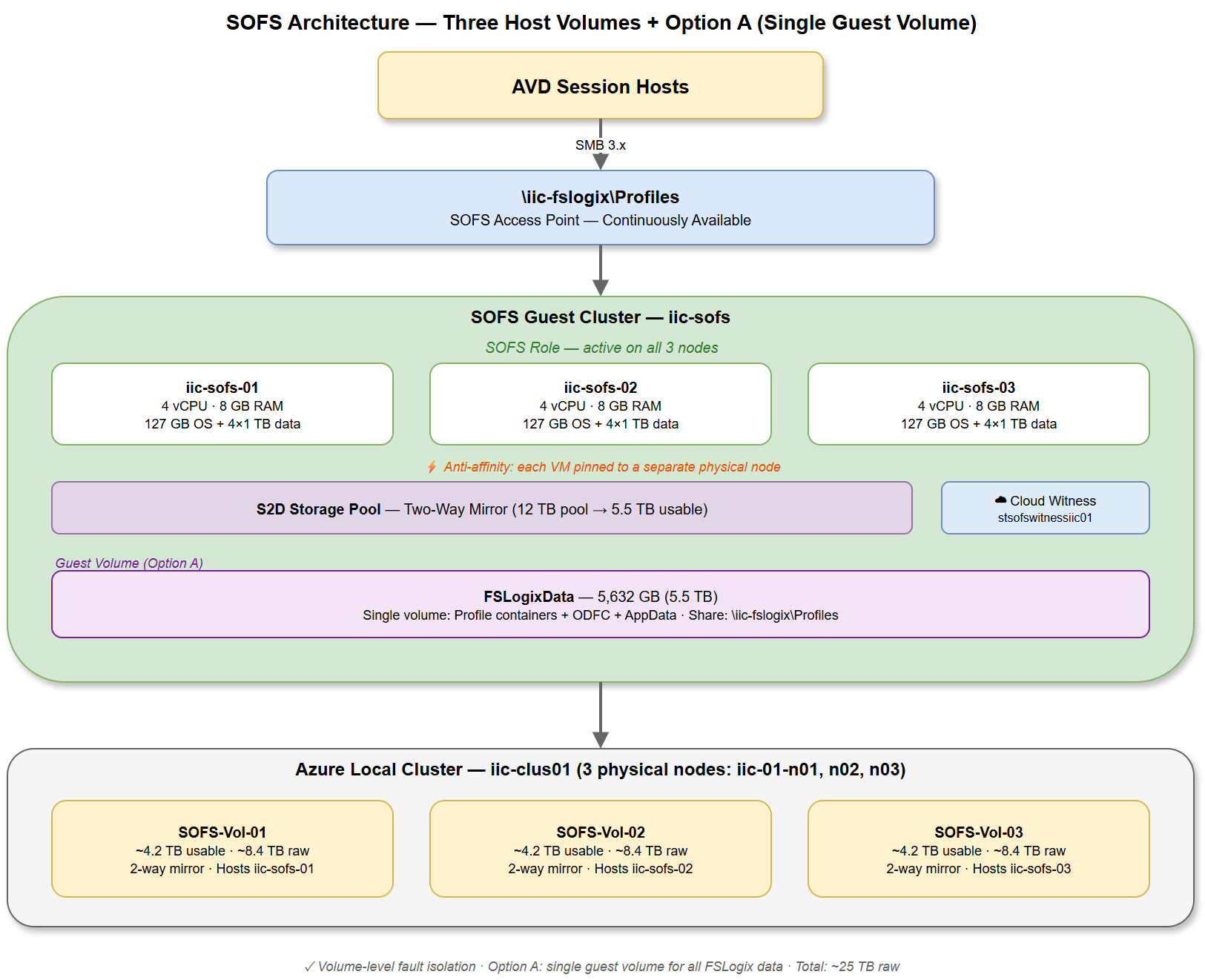

One guest S2D volume and one SMB share hold all FSLogix data (profiles, ODFC, AppData). Simplest deployment — suitable for very small environments under 50 users.

Three host volumes + Single layout — Single Share

Single Host Volume

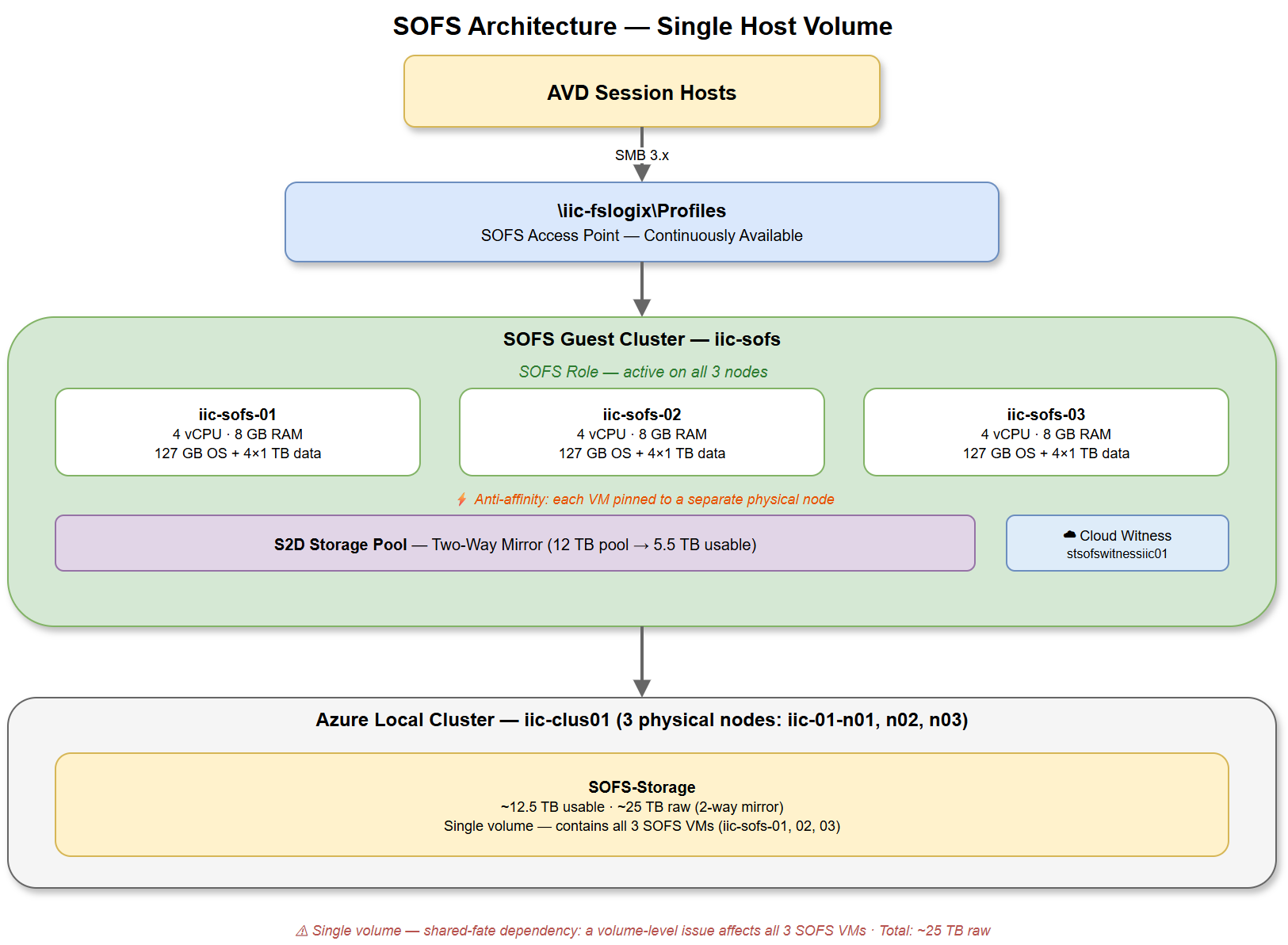

All three SOFS VMs share one Azure Local CSV volume. Simpler but without host-layer fault isolation — use only when the cluster cannot accommodate three separate volumes.

Single host volume — base layout

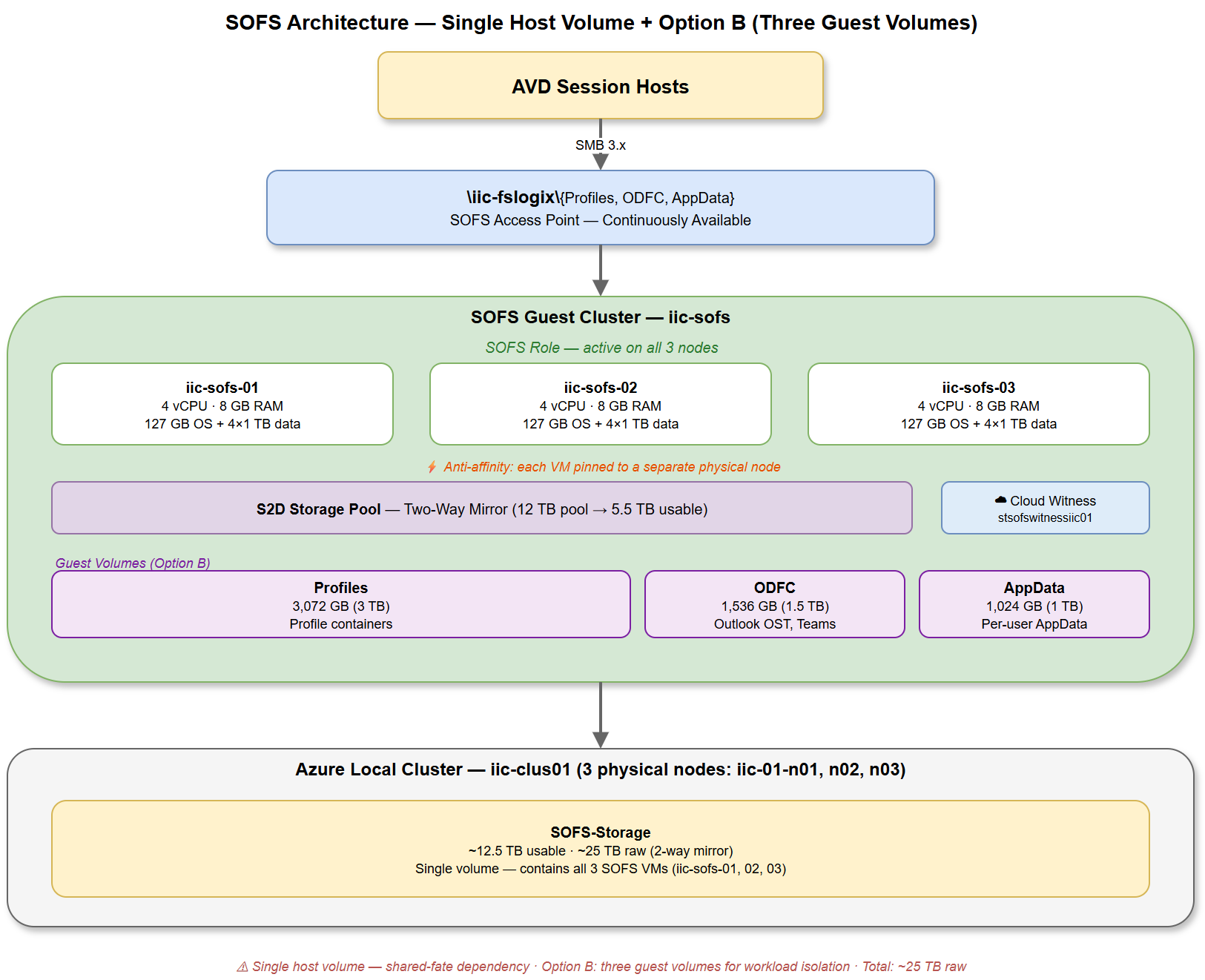

Three volumes and three shares for workload isolation, even without host-layer fault isolation.

Single host volume + Triple layout — Three Shares

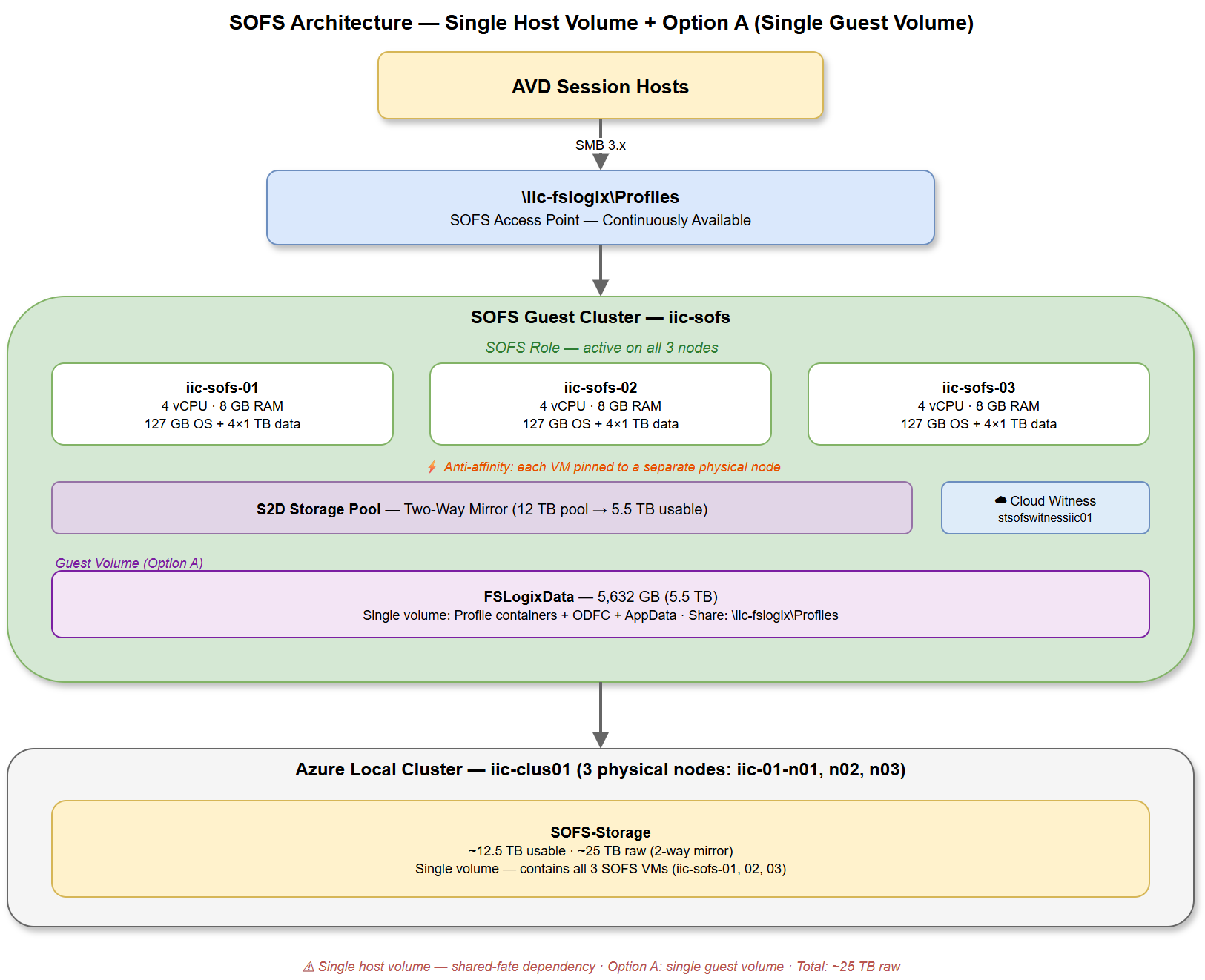

One guest S2D volume and one SMB share — the simplest possible deployment.

Single host volume + Single layout — Single Share

Environment Host Volumes Mirror Share Model
Under 50 users, personal desktops Single or Three Two-way Single layout or Triple layout
50–500 users, mixed workloads Three Two-way Triple layout
500+ users, pooled session hosts Three Two-way Triple layout
Maximum resiliency required Three Three-way Triple layout

Key Design Points

Component Specification
SOFS VMs 3 × Windows Server 2025 Datacenter: Azure Edition Core (Gen2) — 4 vCPU, 8 GB RAM each
Guest Cluster Windows Failover Cluster with Storage Spaces Direct (S2D)
SOFS Role Scale-Out File Server — single continuously available SMB endpoint
Host Resiliency Azure Local two-way mirror CSV volumes
Guest Resiliency S2D two-way mirror (recommended) or three-way mirror
Client Access SMB3 with transparent failover via persistent handles
Quorum Azure Storage Account cloud witness

Stacked Resiliency

Resiliency is applied at two stacked layers — a two-way mirror at the Azure Local host layer and a two-way mirror at the guest S2D layer — providing defense in depth without going overboard.

Layer Protection Failure Tolerance
Azure Local (host) Two-way mirror CSV volumes Survives 1 physical node or disk failure
Guest S2D Two-way mirror inside the VMs Survives 1 SOFS VM failure
Combined Stacked mirrors A physical node failure takes out one SOFS VM; the guest S2D mirror continues serving profiles from the remaining two nodes with zero interruption

The stacked approach means raw capacity requirements multiply — see Capacity Planning for the full calculation methodology.


Component Relationships

The solution builds through a layered stack:

  1. Azure Local cluster (3+ physical nodes) provides the compute and storage substrate
  2. Host CSV volumes (Azure Local two-way mirror) carve out dedicated storage for each SOFS VM
  3. SOFS VMs (3 × Arc VMs) run Windows Server with Failover Clustering and S2D
  4. Guest S2D pool aggregates data disks across all 3 VMs into a single storage pool
  5. Guest S2D volume(s) are carved from the pool as two-way mirrored ReFS volumes
  6. SOFS role presents a single, highly available SMB endpoint (\\<sofs-access-point>\<share>)
  7. AVD session hosts connect to the SOFS SMB share(s) for FSLogix profile containers

Deployment Phases

The solution begins with a Phase 0 planning checkpoint — finalize the host storage topology decision, populate variables.yml, and choose your deployment tool — then progresses through 11 execution phases spanning two layers: Azure / Host provisioning and Guest OS configuration. The handoff between layers happens after VM creation (Phase 2), with Domain Join (Phase 4) crossing back to the Azure layer briefly.

flowchart TD
    P0["<b>Phase 0 — Planning & Prerequisites</b><br/>Host Storage Topology: single CSV or one-per-VM?<br/><i>Finalize variables.yml · Choose tool · Validate prereqs</i>"]

    subgraph azure["Azure / Host Layer"]
        P1["<b>Phase 1</b><br/>Prepare Azure Local Host Environment<br/><i>Terraform · Bicep · ARM · PowerShell · Ansible</i>"]
        P2["<b>Phase 2</b><br/>Create the 3 SOFS Node VMs<br/><i>Terraform · Bicep · ARM · PowerShell · Ansible</i>"]
        P4["<b>Phase 4</b><br/>Post-Deployment VM Config (Domain Join)<br/><i>All Tools — Azure-side Arc Extension</i>"]
    end

    subgraph guest["Guest OS Layer"]
        P3["<b>Phase 3</b><br/>Configure Anti-Affinity Rules<br/><i>PowerShell</i>"]
        P5["<b>Phase 5</b><br/>Install Required Roles and Features<br/><i>PowerShell · Ansible</i>"]
        P6["<b>Phase 6</b><br/>Validate & Create Guest Failover Cluster<br/><i>PowerShell · Ansible</i>"]
        P7["<b>Phase 7</b><br/>Enable Storage Spaces Direct (S2D)<br/><i>PowerShell · Ansible</i>"]
        D{"Single layout or Triple layout?"}
        P8A["<b>Phase 8 — Single layout</b><br/>Single Volume + Single Share"]
        P8B["<b>Phase 8 — Triple layout</b><br/>Three Volumes + Three Shares"]
        P9["<b>Phase 9</b><br/>Configure NTFS Permissions for FSLogix<br/><i>PowerShell · Ansible</i>"]
        P10["<b>Phase 10</b><br/>Antivirus Exclusions<br/><i>PowerShell · Ansible</i>"]
        P11["<b>Phase 11</b><br/>Validation and Testing<br/><i>PowerShell · Ansible</i>"]
    end

    P0 --> P1
    P1 --> P2
    P2 -.->|Handoff| P3
    P3 --> P4
    P4 --> P5
    P5 --> P6
    P6 --> P7
    P7 --> D
    D -->|Single layout| P8A
    D -->|Triple layout| P8B
    P8A --> P9
    P8B --> P9
    P9 --> P10
    P10 --> P11

    style P0 fill:#f5f5f5,stroke:#666666,stroke-width:2px,color:#333
    style azure fill:#dae8fc,stroke:#6c8ebf,color:#333
    style guest fill:#d5e8d4,stroke:#82b366,color:#333
    style P4 fill:#fff2cc,stroke:#d6b656,color:#333
    style D fill:#e1d5e7,stroke:#9673a6,color:#333

Full-resolution diagram

A draw.io source file is available at docs/assets/diagrams/sofs-deployment-phases.drawio for editing. The exported PNG is at sofs-deployment-phases.png. See Deployment Paths for guidance on choosing your tool combination.

SOFS Deployment Phases — 11-Phase Model


Why a Guest Cluster

This design uses a guest cluster (S2D running inside VMs on Azure Local) rather than hosting FSLogix shares directly on the Azure Local cluster's own SOFS. The separation provides:

  • Workload isolation — The SOFS guest cluster is independent of the Azure Local infrastructure workloads. Maintenance, patching, and troubleshooting happen without touching the host cluster.
  • Dedicated resources — CPU, memory, and storage are reserved specifically for FSLogix. No contention with other VMs running on the same cluster.
  • Independent scaling — Guest S2D volumes can grow by adding or expanding data disks without modifying host-layer storage.
  • Portability — The guest cluster design can be replicated across Azure Local clusters with different hardware configurations.

Anti-Affinity

Each SOFS VM must run on a separate Azure Local physical node. Anti-affinity rules ensure the cluster scheduler never places two SOFS VMs on the same host.

Without anti-affinity, a single physical node failure could take out two (or all three) SOFS VMs simultaneously — defeating the entire purpose of the guest S2D cluster.

Anti-affinity is configured at the Azure Local host cluster level using:

  • New-ClusterAffinityRule with DifferentNode type (Azure Local 23H2+ / Windows Server 2025)
  • AntiAffinityClassNames as a fallback for older builds

Cloud Witness

A 3-node cluster requires a quorum witness for majority voting. An Azure Storage Account cloud witness is the recommended model because:

  • It does not consume an additional VM or file share
  • It operates independently from the Azure Local cluster's own quorum
  • Latency to Azure is acceptable for quorum heartbeats (small blob writes)
  • It eliminates the need for a separate witness infrastructure

The cloud witness storage account is created in the same Azure resource group as the SOFS resources.


Network Architecture

All SOFS VMs are connected to the compute logical network — the same network as the AVD session hosts.

Required Ports — Between SOFS VMs

Port Protocol Purpose
445 TCP SMB — S2D replication, CSV redirected I/O
5445 TCP SMB over QUIC (if used)
5985–5986 TCP WinRM / PowerShell Remoting
135 TCP RPC Endpoint Mapper — cluster communication
49152–65535 TCP RPC dynamic ports — cluster and S2D
3343 UDP Cluster network driver

Required Ports — SOFS to AVD Session Hosts

Port Protocol Purpose
445 TCP SMB — FSLogix profile access

Network Recommendations

  • Same VLAN — Place SOFS VMs and AVD session hosts on the same compute network/VLAN for optimal latency. Routing hops add latency that impacts logon/logoff performance.
  • SMB encryption — Enabled by default on the CA shares. All FSLogix traffic between session hosts and the SOFS is encrypted in transit.
  • Dedicated storage VLAN — Optional. For very high-throughput environments, a second NIC on each SOFS VM for intra-cluster S2D replication traffic. Not required for most deployments.

Identity and Authentication

AD Domain Join Requirement

On Azure Local, all VMs — including the SOFS nodes and AVD session hosts — must be AD domain-joined. Pure Entra ID join is not supported for Azure Local Arc VMs.

Authentication Flow

Component Identity Auth to SOFS
AVD session host AD domain member Kerberos — native
User at logon AD domain user Kerberos TGS for the SOFS access point
SOFS cluster AD domain member Kerberos — native

Because both sides (session hosts and SOFS) are in the same AD domain, Kerberos authentication works automatically. No extra trust configuration is needed.

Hybrid Entra ID Join

Hybrid Entra ID Join (domain-joined + registered in Entra ID) is supported and recommended for SSO to the AVD gateway. It does not change the SOFS authentication path — session hosts still use AD Kerberos for SMB access.

Plan identity before deploying

The NTFS and SMB share permissions reference AD domain groups. If your AVD users are in a different domain or OU, adjust the group references during the permissions configuration.


What's Next

Topic Link
Host and guest volume layout decisions Storage Design
Raw-to-usable capacity calculations Capacity Planning
AVD identity, Cloud Cache, session host density AVD Considerations
Worked examples at different scales Deployment Scenarios
