Identity & RBAC¶

This guide explains every aspect of identity configuration for AVD on Azure Local — the two supported authentication strategies, exactly what RBAC roles get assigned and where, the VM extensions deployed on each session host (Arc-enabled VMs), and how each IaC tool implements it.

Azure Local Constraint — Entra-only Join NOT Supported

On Azure Local, session hosts are Arc-enabled VMs (Microsoft.HybridCompute/machines), NOT standard Azure VMs. Arc-enabled VMs do not support Entra-only join. Only AD-Only and Hybrid Join are valid identity strategies. If you need SSO and Conditional Access, use Hybrid Join (recommended). Entra-only join is only available for standard Azure VMs in cloud-based AVD deployments.

Why Identity Configuration Matters¶

AVD session hosts are Arc-enabled VMs on Azure Local that users log into remotely. Something needs to authenticate those users. There are two supported ways to do it on Azure Local, each with different infrastructure requirements, user experience, and security capabilities. The choice affects:

Whether users get single sign-on (SSO) to their desktop
Whether you can enforce Conditional Access policies (MFA, compliant device, location)
What VM extensions get deployed on each session host
What RBAC role assignments are needed in Azure
Whether you need an on-premises AD domain controller

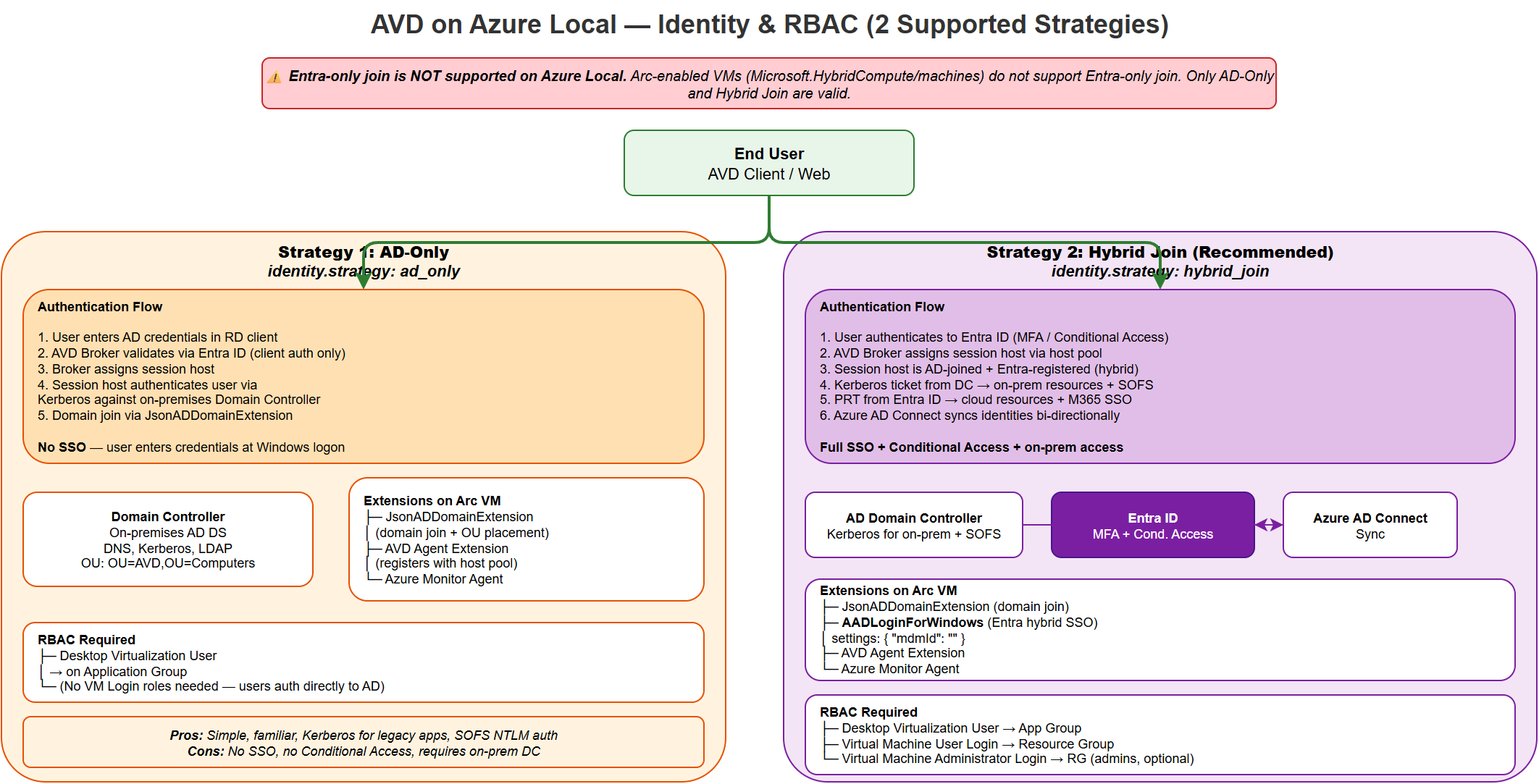

Identity Strategies Comparison

Open the draw.io source for an editable version.

What Gets Deployed¶

Identity deployment creates two types of Azure resources:

1. RBAC Role Assignments¶

Azure Resource Type	What It Is
`Microsoft.Authorization/roleAssignments`	A binding between a security principal (Entra ID group), a role definition, and a scope (resource group or app group). Multiple role assignments are created depending on the identity strategy.

2. VM Extensions (per Arc-enabled session host)¶

Extension	ARM Type	Publisher	When Deployed
`JsonADDomainExtension`	`Microsoft.HybridCompute/machines/extensions`	`Microsoft.Compute`	`ad_only` and `hybrid_join` — joins the VM to the AD domain
`AADLoginForWindows`	`Microsoft.HybridCompute/machines/extensions`	`Microsoft.Azure.ActiveDirectory`	`hybrid_join` only — enables Entra ID login and SSO alongside AD domain membership

Identity Strategies — Deep Dive¶

AD-Only (`ad_only`)¶

What it is: Traditional Active Directory domain join. Users authenticate with their AD username and password. No Entra ID involvement at all.

Authentication flow step by step:

User opens AVD client → client contacts the AVD broker at rdbroker.wvd.microsoft.com (HTTPS 443)
Broker validates the user's Entra ID token (yes, even for AD-only, the AVD client authenticates to the broker via Entra ID — but the session host login is pure AD)
Broker assigns a session host and returns an RDP connection file
Client initiates RDP to the session host via the AVD gateway reverse-connect
Session host presents a Windows logon screen — user enters AD credentials (domain\username or user@domain.fqdn)
Session host validates credentials against the AD domain controller over LDAP/Kerberos (on-premises network)
User is logged in with their AD profile

What gets deployed on each session host:

JsonADDomainExtension — Joins the VM to the AD domain. The extension runs netdom join under the hood using the service account credentials from config (identity.domain.join_account). Requires outbound connectivity to the domain controller over LDAP (389/636) and Kerberos (88).

RBAC role assignments created:

Role	Scope	Principal	Purpose
Desktop Virtualization User	Application Group	`avd_users_group_id`	Lets Entra ID users see the desktop/app in the AVD client feed. Without this, the client shows "No resources available."

Note: No VM Login roles are needed because users authenticate directly to AD, not Entra ID.

Pros:

Simplest AVD setup if you already have AD infrastructure
No Entra ID premium features needed
Works with legacy apps that require AD Kerberos tokens

Cons:

No SSO — users must enter credentials at the Windows logon screen after connecting
No Conditional Access policies on the session
Requires on-premises AD domain controller accessible from session hosts

Hybrid Join (`hybrid_join`) — Recommended¶

What it is: Session hosts are domain-joined to AD AND registered in Entra ID. Gets the benefits of both worlds — AD Kerberos for legacy apps, Entra SSO for the user experience, and Conditional Access for security.

Authentication flow step by step:

User opens AVD client → authenticates to the AVD broker via Entra ID (PRT)
Broker assigns a session host
Client initiates RDP to the session host via the AVD gateway
The AADLoginForWindows extension validates the token against Entra ID (SSO)
Session host also has an AD computer account → it can request Kerberos tickets on behalf of the user
User is logged in with SSO, and has access to both Entra ID and AD resources

What gets deployed on each session host:

JsonADDomainExtension — Domain joins the VM to AD (same as ad_only)
AADLoginForWindows — Enables Entra ID login with one additional setting: { "mdmId": "" }. The empty mdmId tells the extension this is a hybrid join (not Intune-managed) so it registers the device in Entra ID as hybrid-joined rather than Entra-joined.

Prerequisites:

Azure AD Connect (or Cloud Sync) must be running and syncing AD computer objects to Entra ID. Without this, the hybrid join registration fails — the session host appears as "Pending" in Entra ID > Devices.
AD domain controller must be accessible from session hosts

RBAC role assignments created:

Role	Scope	Principal	Purpose
Desktop Virtualization User	Application Group	`avd_users_group_id`	Feed visibility.
Virtual Machine User Login	Resource Group	`avd_users_group_id`	Entra ID-based sign-in permission.
Virtual Machine Administrator Login	Resource Group	`avd_admins_group_id`	Optional admin access via Entra ID.

Pros:

SSO via Entra ID — best user experience
Full Conditional Access support
Kerberos tickets available — legacy apps work
Access to both cloud and on-premises resources

Cons:

Most complex infrastructure — requires AD DC, Azure AD Connect, and Entra ID
Two identity sources to maintain and troubleshoot
Azure AD Connect sync latency can delay hybrid join registration (up to 30 min)

RBAC Roles — Complete Reference¶

Role Definition Name	Built-in Role ID	Scope	Assigned When	What It Grants
Desktop Virtualization User	`1d18fff3-a72a-46b5-b4a9-0b37a71c5b63`	Application Group	Always (all strategies)	Permission to access the published desktop or app. Without this, the AVD client shows "No resources found."
Virtual Machine User Login	`fb879df8-f326-4884-b1cf-06f3ad86be52`	Resource Group	`hybrid_join`	Permission to sign into VMs as a standard user via Entra ID. Required for the `AADLoginForWindows` extension to work.
Virtual Machine Administrator Login	`1c0163c0-47e6-4577-8991-ea5c82e286e4`	Resource Group	`hybrid_join` (optional)	Permission to sign into VMs as an administrator via Entra ID. For IT staff troubleshooting.
Desktop Virtualization Power On Contributor	`489581de-a3bd-480d-9518-53dea7416b33`	Host Pool / Resource Group	When scaling is enabled	Allows the AVD scaling plan service (first-party app `9cdead84-a844-4324-93f2-b2e6bb768d07`) to start and stop session host VMs.

Configuration — Every Field Explained¶

identity:
  strategy: hybrid_join               # ad_only | hybrid_join
  entra_id:
    tenant_id: "00000000-..."         # Your Entra ID tenant ID. Used by the AADLoginForWindows extension.
    avd_users_group_id: "00000000-..."  # Object ID of the Entra ID security group containing AVD users.
                                       # Gets Desktop Virtualization User + VM User Login roles.
    avd_admins_group_id: "00000000-..." # Object ID of the admin group. Gets VM Administrator Login role. Optional.
  domain:
    fqdn: "iic.local"                 # AD domain FQDN for domain join. Used by ad_only and hybrid_join.
    ou_path: "OU=AVD,OU=Computers,DC=iic,DC=local"  # OU where session host computer accounts are created.
    join_account: "svc-domainjoin@iic.local"          # Service account with permission to join computers to domain.
                                                       # Password pulled from Key Vault at deploy time.
  rbac:
    assign_roles: true                # Whether to create RBAC role assignments. Set to false if managing roles externally.

What Each IaC Tool Deploys — Resource by Resource¶

Terraform (`src/terraform/identity.tf`)¶

Terraform Resource	Azure Resource Created	Condition	What It Does
`azurerm_role_assignment.avd_user`	Role assignment: DVU on App Group	`var.avd_user_group_id != ""`	Assigns "Desktop Virtualization User" to the users group on the application group scope.
`azurerm_role_assignment.vm_user_login`	Role assignment: VM User Login on RG	`strategy == "hybrid_join" && avd_user_group_id != ""`	Assigns "Virtual Machine User Login" to the users group on the resource group. Only for Hybrid Join.
`azurerm_role_assignment.vm_admin_login`	Role assignment: VM Admin Login on RG	`strategy == "hybrid_join" && avd_admin_group_id != ""`	Assigns "Virtual Machine Administrator Login" to the admin group.
`azurerm_role_assignment.custom`	Additional role assignments	`length(var.rbac_assignments) > 0`	Iterates over `var.rbac_assignments` list for any custom role bindings.
`azapi_resource.aad_login_ext`	AADLoginForWindows VM extension	`strategy == "hybrid_join"`	Deploys the `AADLoginForWindows` extension to each session host using `for_each = toset(local.vm_names)`. Settings include `{ "mdmId": "" }`.

Terraform variables:

identity_strategy  = "hybrid_join"
avd_user_group_id  = "aaaaaaaa-bbbb-cccc-dddd-eeeeeeeeeeee"
avd_admin_group_id = "ffffffff-gggg-hhhh-iiii-jjjjjjjjjjjj"
rbac_assignments   = []  # Optional additional role assignments

Bicep / ARM¶

The session host Bicep module (session-hosts.bicep) deploys the JsonADDomainExtension and AADLoginForWindows extensions as child resources of each VM. The identity module handles RBAC role assignments via Microsoft.Authorization/roleAssignments resources.

PowerShell (`src/powershell/Configure-AVDIdentity.ps1`)¶

The PowerShell script does the following in order:

Loads config and determines the identity strategy
Checks for existing role assignments (idempotent — won't create duplicates)
Creates Desktop Virtualization User role assignment on the app group
If hybrid_join: creates Virtual Machine User Login role assignment on the RG
If admin group is configured: creates Virtual Machine Administrator Login role assignment
If hybrid_join: loops over all session hosts and deploys the AADLoginForWindows extension via Invoke-AzRestMethod PUT to the Arc extensions API

.\src\powershell\Configure-AVDIdentity.ps1 -ConfigPath config/variables.yml

Ansible (`src/ansible/roles/avd-identity/tasks/main.yml`)¶

Uses azure_rm_roleassignment for RBAC and azure_rm_resource for the VM extension deployment. Tagged as identity in the site.yml playbook.

ansible-playbook src/ansible/playbooks/site.yml -i inventory.yml --tags identity

Conditional Access — Recommended Policies¶

For hybrid_join, configure these Conditional Access policies in the Entra ID portal:

Policy	Target App	Grant Control	Why
Require MFA for AVD	Windows Virtual Desktop (app ID: `9cdead84-a844-4324-93f2-b2e6bb768d07`)	Require multifactor authentication	Prevents credential-stuffed accounts from connecting.
Require compliant device	Windows Virtual Desktop	Require device to be marked as compliant	Ensures only managed/healthy client devices can initiate sessions.
Block legacy auth	Windows Virtual Desktop	Block access — with condition: Client apps = "Other clients"	Prevents old RDP clients that don't support modern auth.
Session controls	Windows Virtual Desktop	Sign-in frequency: 8 hours; Persistent browser: No	Forces re-authentication after 8 hours. Prevents stale sessions.

Troubleshooting¶

Symptom	Strategy	Root Cause	Resolution
User sees "No resources found"	Any	Missing `Desktop Virtualization User` role on the app group	Run identity deployment or manually assign the role
"Access denied" after connecting	`hybrid_join`	Missing `Virtual Machine User Login` role on the RG	Assign the role to the users group
Domain join failed	`ad_only` / `hybrid_join`	Service account can't join to domain, OU path wrong, or DC unreachable	Check OU path, service account permissions, and network connectivity to DC on port 389/636/88
Hybrid join "Pending" in Entra	`hybrid_join`	Azure AD Connect hasn't synced the computer object yet	Wait for sync (up to 30 min) or force sync: `Start-ADSyncSyncCycle -PolicyType Delta`
SSO not working — user gets password prompt	`hybrid_join`	`AADLoginForWindows` extension not installed, or PRT expired	Verify extension is installed: `az connectedmachine extension show --machine-name <vm> --name AADLoginForWindows`. Check that the RDP client supports SSO (must be Windows client v1.2.3317+).
