FSLogix Profile Containers

This guide explains everything about FSLogix profile container deployment — what gets built on each session host, the three topology options, exactly how each IaC tool configures it, and how the storage and permissions work.

What FSLogix Does and Why It Exists

Without FSLogix, every time a user logs into a different session host in a pooled host pool, they get a fresh default Windows profile — no settings, no Outlook cache, no desktop shortcuts. FSLogix solves this by mounting a per-user VHDx file from an SMB share at logon. The VHDx looks like a local C:\Users\<username> profile to Windows, but it's actually a virtual disk stored on the network. When the user logs off, the VHDx is cleanly unmounted. Next logon — even on a completely different session host — the same VHDx is mounted and the user gets their full profile back.

What gets installed: The FSLogix agent is pre-installed in the Windows 11 Multi-Session gallery image. No separate install is needed. Configuration is purely via Windows Registry keys.

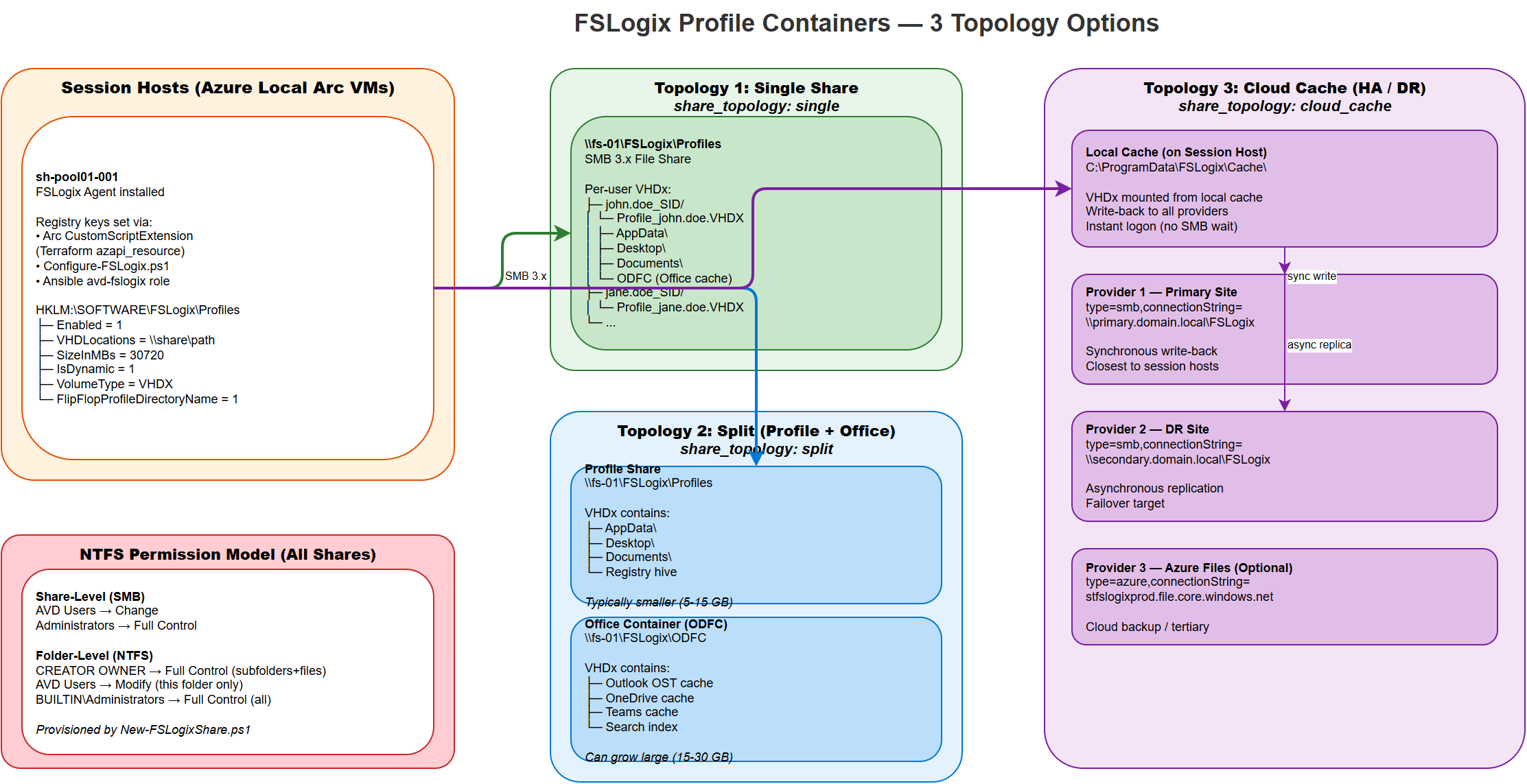

Open the draw.io source for an editable version.

---

What Gets Deployed

FSLogix deployment has two parts: the SMB share (storage infrastructure) and the session host registry configuration (per-VM settings).

Part 1: SMB Share (Storage)

The automation creates or validates an SMB file share where VHDx files will be stored. On Azure Local, this is typically a Scale-Out File Server (SOFS) share on the cluster itself — see the azurelocal-sofs-fslogix companion repository. The share must:

• Be accessible from all session hosts over SMB 3.x (port 445)
• Have NTFS permissions set correctly (see permissions section below)
• Have enough capacity for all users (see sizing section below)

Part 2: Session Host Registry Configuration

On each session host VM, the automation writes Windows Registry keys that tell the FSLogix agent where to find the share and how to behave. These registry keys are applied via a CustomScriptExtension deployed to each Arc-enabled VM.

Base registry keys set on every session host (all topologies):

Registry Path	Value Name	Type	Value	Purpose
HKLM:\SOFTWARE\FSLogix\Profiles	Enabled	DWORD	1	Turns FSLogix profile containers on.
HKLM:\SOFTWARE\FSLogix\Profiles	SizeInMBs	DWORD	30000	Maximum VHDx size per user in MB. Default 30 GB. Controls how large a user's profile can grow.
HKLM:\SOFTWARE\FSLogix\Profiles	VolumeType	String	VHDX	VHDx format. VHDX is strongly preferred over VHD — supports up to 64 TB and is more resilient.
HKLM:\SOFTWARE\FSLogix\Profiles	FlipFlopProfileDirectoryName	DWORD	0 or 1	Changes folder naming from SID_username to username_SID. Flip-flop is easier to browse.

Additional keys per topology — see topology sections below.

---

Topology Options — Detailed

Single Share (single)

What it is: One VHDx file per user, all stored on one SMB share. Simplest possible setup.

How it works at logon:

1. User initiates RDP to a session host in the pooled host pool
2. FSLogix agent reads VHDLocations from registry → gets the UNC path
3. Agent connects to the share over SMB 3.x, opens or creates \\share\Profiles\<SID>_<username>\Profile_<username>.VHDX
4. VHDx is mounted as a read/write disk and symlinked to C:\Users\<username>
5. Windows logon continues with the profile loaded from the VHDx

Registry key set:

Registry Path	Value Name	Value
HKLM:\SOFTWARE\FSLogix\Profiles	VHDLocations	\\fs-01.domain.local\FSLogix\Profiles

Folder structure on the share:

\\fs-01.domain.local\FSLogix\Profiles\
├── S-1-5-21-...-1001_jsmith\
│   └── Profile_jsmith.VHDX        ← 30 GB max, dynamically expanding
├── S-1-5-21-...-1002_jdoe\
│   └── Profile_jdoe.VHDX
└── ...

Configuration:

fslogix:
  enabled: true
  share_topology: single
  vhd_size_mb: 30000
  vhd_type: VHDX
  flip_flop_name: false
  single:
    vhd_path: "\\\\fs-01.domain.local\\FSLogix\\Profiles"

Best for: Small/medium deployments (< 200 users), single-site, simplest to operate.

---

Split — Three Shares (split)

What it is: Three separate storage areas per user — Profiles (desktop, AppData general settings), ODFC (Office Data File Container — Outlook OST, OneDrive cache, Teams cache), and AppData (redirected via Folder Redirection GPO). This matches Option B in the azurelocal-sofs-fslogix companion repository, which provisions three S2D volumes and three SOFS shares with capacity split ~55% / ~35% / ~10%.

Why split into three: Office cache can be huge (10+ GB for heavy Outlook users), and AppData contains application-specific data that benefits from separate management. Splitting lets you:

• Apply different backup/replication policies (ODFC is recreatable from Exchange, profile is not, AppData is low-priority)
• Set different size limits (smaller profile, larger ODFC)
• Isolate the I/O workload (ODFC is very write-heavy)
• Manage AppData growth independently (application caches, browser data)

Registry keys set:

Registry Path	Value Name	Value
HKLM:\SOFTWARE\FSLogix\Profiles	VHDLocations	\\FSLogixSOFS\Profiles
HKLM:\SOFTWARE\Policies\FSLogix\ODFC	Enabled	1
HKLM:\SOFTWARE\Policies\FSLogix\ODFC	VHDLocations	\\FSLogixSOFS\ODFC

AppData is handled via Folder Redirection GPO (not a VHDx container) — the GPO redirects %APPDATA% to \\FSLogixSOFS\AppData\%USERNAME%. This keeps AppData off the profile VHDx and on its own dedicated share.

Configuration:

fslogix:
  enabled: true
  share_topology: split
  split:
    profile_share: "\\\\FSLogixSOFS\\Profiles"
    office_share: "\\\\FSLogixSOFS\\ODFC"
    appdata_share: "\\\\FSLogixSOFS\\AppData"

SOFS share capacity planning (Option B):

Share	S2D Volume	Capacity %	Example (61 TB total)
Profiles	Profiles	~55%	33,485 GB
ODFC	ODFC	~35%	21,299 GB
AppData	AppData	~10%	6,144 GB

Best for: Medium/large environments (50+ users), production deployments, heavy Outlook/Teams usage, separate backup requirements.

---

Backup (backup)

What it is: A storage-level resilience strategy that protects FSLogix data using Storage Replica (synchronous or asynchronous block-level replication between SOFS volumes) and/or Azure Backup MARS agent (offsite backup to Azure Recovery Services vault). This is a storage infrastructure concern — it does NOT change session host registry configuration. Session hosts still mount the primary SOFS shares using VHDLocations (single or split topology).

How it works:

1. Storage Replica — Replicates the SOFS S2D volume(s) to a secondary SOFS or another Azure Local cluster volume at the block level. Provides near-zero RPO failover. Configured on the storage infrastructure, transparent to session hosts.
2. Azure Backup MARS agent — Runs on the SOFS cluster nodes, backs up FSLogix VHDx files to an Azure Recovery Services vault. Provides offsite DR with configurable retention policies (daily/weekly/monthly).

Why this is a separate topology: Unlike single and split (which configure session host registry keys), backup is managed at the storage layer by the azurelocal-sofs-fslogix companion repository. The AVD session hosts are unaware of backup — they always mount the primary shares.

Configuration (storage-level, in sofs-fslogix repo):

backup:
  storage_replica:
    enabled: true
    target_server: "sofs-02.domain.local"
    replication_mode: synchronous     # synchronous | asynchronous
  azure_backup:
    enabled: true
    vault_name: "rsv-fslogix-backup"
    retention_daily: 7
    retention_weekly: 4
    retention_monthly: 12

Cloud Cache

FSLogix Cloud Cache (CCDLocations) is a separate optional add-on that can be layered on top of any topology. It caches VHDx data locally on the session host and asynchronously replicates to multiple SMB targets. Cloud Cache is NOT a primary topology — it is configured independently when multi-site active-active access is required. See the azurelocal-sofs-fslogix docs for Cloud Cache configuration.

Best for: Production environments requiring data protection, compliance with backup retention policies, disaster recovery across sites.

---

NTFS Permissions — Why They Matter

FSLogix requires a specific permission model on the SMB share. Get this wrong and users either can't create profiles, or they can read each other's profiles (security issue).

Share-Level Permissions

Principal	Permission	Purpose
Everyone or AVD Users	Change	Allows users to connect and write to the share root. FSLogix creates per-user subfolders.
BUILTIN\Administrators	Full Control	Admin access for troubleshooting and maintenance.

Folder-Level (NTFS) Permissions on the Share Root

Principal	Permission	Applies To	Purpose
CREATOR OWNER	Full Control	Subfolders and files only	Each user gets full control over their own profile folder (because they created it). This is the critical security boundary — users can only access folders they created.
AVD Users Group	Modify	This folder only	Allows users to create their top-level profile folder. Does NOT grant access to other users' folders.
BUILTIN\Administrators	Full Control	This folder, subfolders, and files	Admin access for troubleshooting.

Common Mistake

Do NOT give AVD Users permissions on subfolders/files. That would allow users to read each other's VHDx files. The CREATOR OWNER approach ensures isolation.

---

What Each IaC Tool Deploys — Resource by Resource

Terraform (src/terraform/fslogix.tf)

Terraform deploys the session host configuration via a CustomScriptExtension on each Arc-enabled VM:

Terraform Resource	What It Does
azapi_resource.fslogix_ext	Creates a Microsoft.HybridCompute/machines/extensions of type CustomScriptExtension on each session host VM. Uses for_each = var.fslogix_enabled ? toset(local.vm_names) : toset([]) to iterate over all VMs.

How the script is built: The locals block in fslogix.tf constructs a PowerShell one-liner from fslogix_base_commands (base registry keys) + fslogix_topology_commands (topology-specific keys). The one-liner is passed to protectedSettings.commandToExecute. This means the registry configuration is applied at deployment time, not at every boot.

Terraform variables:

fslogix_enabled              = true
fslogix_share_topology       = "single"          # single | split
fslogix_single_vhd_path      = "\\\\FSLogixSOFS\\Profiles"
fslogix_size_in_mb           = 30000
fslogix_vhd_type             = "VHDX"
fslogix_flip_flop            = false
# For split topology (Option B — three shares):
# fslogix_split_profile_path = "\\\\FSLogixSOFS\\Profiles"
# fslogix_split_office_path  = "\\\\FSLogixSOFS\\ODFC"
# fslogix_split_appdata_path = "\\\\FSLogixSOFS\\AppData"

Bicep / ARM

FSLogix configuration is applied via the same CustomScriptExtension mechanism as Terraform. The Bicep session-hosts.bicep module includes the FSLogix extension as a child resource of each session host VM.

PowerShell

Two scripts handle FSLogix:

• New-FSLogixShare.ps1 — Creates the SMB share on the file server, sets NTFS permissions (CREATOR OWNER, AVD users group, Administrators), and validates SMB connectivity from the deployment machine.
• Configure-FSLogix.ps1 — Loops over all session hosts, connects via Invoke-AzRestMethod to deploy the CustomScriptExtension that writes the registry keys.

# Step 1: Create the share (run once)
.\src\powershell\New-FSLogixShare.ps1 -ConfigPath config/variables.yml

# Step 2: Configure session hosts (run after host provisioning)
.\src\powershell\Configure-FSLogix.ps1 -ConfigPath config/variables.yml

Ansible (src/ansible/roles/avd-fslogix/tasks/main.yml)

The Ansible role uses azure_rm_resource to deploy the CustomScriptExtension on each session host. The PowerShell registry commands are passed as the commandToExecute in protectedSettings.

ansible-playbook src/ansible/playbooks/site.yml -i inventory.yml --tags fslogix

---

Sizing Guidelines

Users	Recommended VHDx Max Size	Estimated Share Capacity	Rationale
1–50	30 GB	2 TB	Generous per-user allocation. VHDx files are dynamically expanding — actual usage will be much less than max.
50–200	30 GB	6 TB	Assume ~50% average fill rate at steady state.
200–500	20 GB	10 TB	Reduce per-user max to control share growth. Implement quotas.
500+	15 GB	Plan per user	Large deployments need IOPS planning too. ~5–10 IOPS per user at steady state, ~50 IOPS during logon storm.

IOPS considerations: FSLogix VHDx I/O is primarily random reads with intermittent writes. Logon storms (everyone arriving at 9 AM) create a burst of ~50 IOPS per user for 30–60 seconds. The SOFS CSV must handle this peak. Azure Local clusters with NVMe or SSD cache tiers handle this well.

---

Troubleshooting

Symptom	Root Cause	Resolution
Profile not loading — user gets temp profile	HKLM:\SOFTWARE\FSLogix\Profiles\Enabled is not 1, or the VHD path is unreachable	Verify registry keys on the session host. Test SMB connectivity: Test-Path \\fs-01\FSLogix\Profiles from the VM.
Slow logon (30+ seconds)	SMB share is overloaded, or VHDx is fragmented/oversized	Check SOFS IOPS and latency. Consider splitting to reduce VHDx size. Defragment VHDx files offline.
VHDx locked — "profile in use" error	Previous session did not cleanly unmount the VHDx	Check for orphaned sessions on other hosts: Get-AzWvdUserSession. Force logoff the stuck session. If persistent, check FSLogix event log (Microsoft-FSLogix-Apps/Operational).
Permission denied on share	NTFS permissions are wrong — user can't create their profile folder	Verify NTFS permissions match the table above. Most common mistake: missing CREATOR OWNER or AVD Users having wrong scope.
Cloud Cache not replicating	Secondary provider is unreachable or the CCDLocations string is malformed	Cloud Cache is an optional add-on, not a primary topology. Check FSLogix event log for replication errors. Validate the connection string format. Test SMB connectivity to all providers. See the sofs-fslogix companion repo for Cloud Cache configuration.
