Architecture Overview¶

Solution Summary¶

This repository provides deployment automation for Azure Virtual Desktop (AVD) using Azure Local (formerly Azure Stack HCI) as the session-host compute platform.

The AVD architecture has two distinct planes:

Control plane – Hosted in Azure. Includes the host pool, application groups, workspace, and all supporting Azure services (Key Vault, Log Analytics, Storage for FSLogix).
Session-host plane – Hosted on-premises on Azure Local clusters. VMs are created as Arc-enabled virtual machines and registered with the AVD host pool in Azure.

High-Level Architecture¶

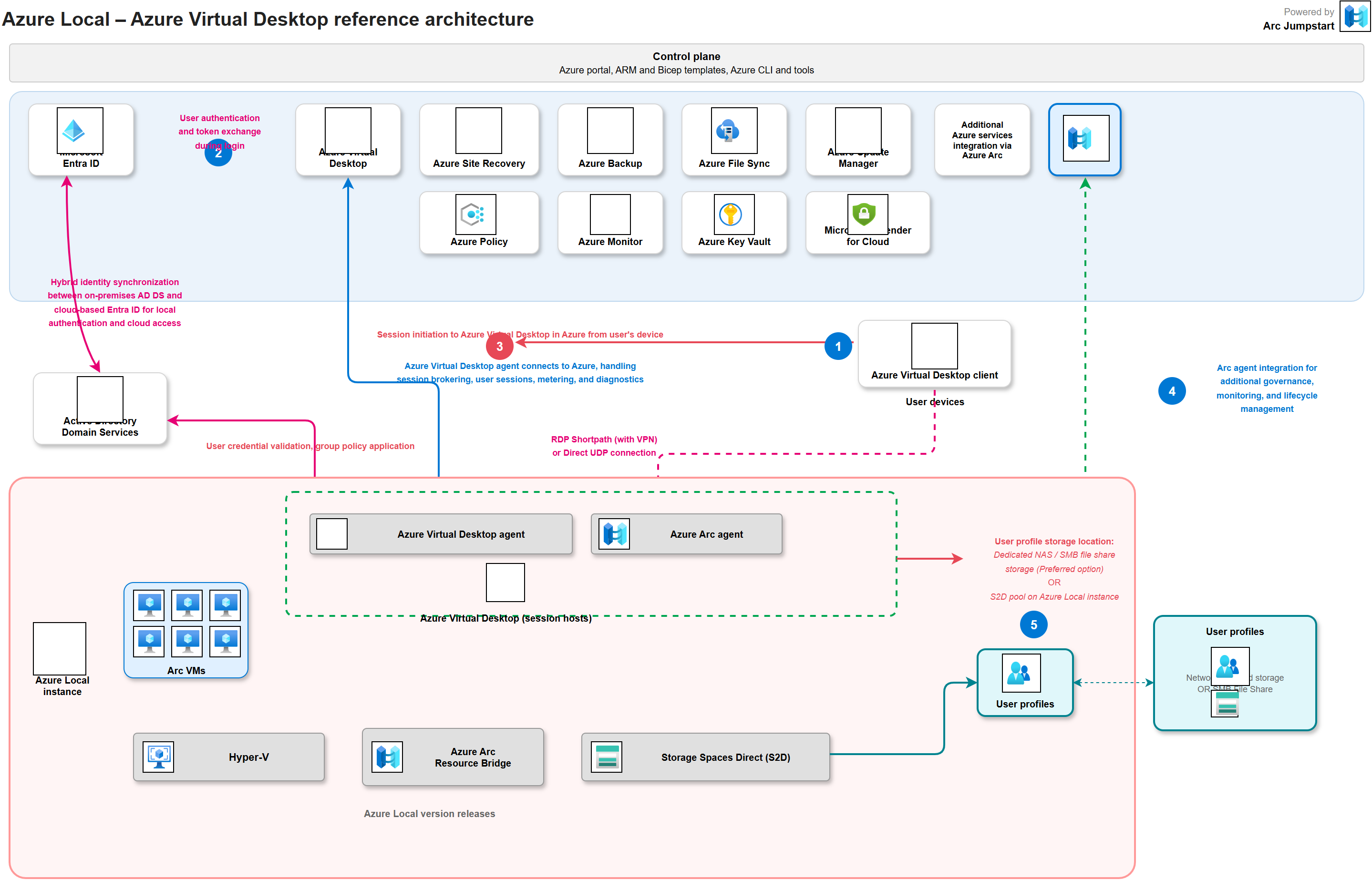

AVD on Azure Local reference architecture — AVD on Azure Local — control plane in Azure, session hosts and SOFS on-premises, connected via Arc Resource Bridge and Arc-enabled AVD agent registration.

Key Components¶

Component	Location	Description
Host Pool	Azure	Logical grouping of session hosts; defines pooled vs. personal type
Application Group	Azure	Collection of apps or desktops published to users
Workspace	Azure	User-facing aggregator for one or more application groups
Log Analytics Workspace	Azure	Diagnostics, monitoring, and Azure Monitor integration
Diagnostic Settings	Azure	Sends AVD control-plane diagnostic categories to Log Analytics
RBAC Assignments	Azure	Least-privilege role assignments for AVD users and VM login roles
Key Vault	Azure	Stores domain-join credentials, registration tokens, and certificates
Storage Account	Azure	Optional: MSIX app attach packages or cloud-side FSLogix share
Azure Local Cluster	On-premises	Hyper-converged infrastructure running Storage Spaces Direct
Arc Resource Bridge	Azure Local	Enables Azure to manage on-premises VMs as Arc-enabled resources
Session Host VMs	Azure Local	Windows VMs running the AVD Agent and FSLogix Agent
SOFS / FSLogix	Azure Local	SMB share providing profile containers (companion repo)

Identity Options¶

Option	Description
Active Directory Domain Services (AD DS)	Traditional on-premises domain; session hosts domain-joined
Microsoft Entra ID + AD DS hybrid	Hybrid join using Entra Connect; supports Conditional Access
Microsoft Entra ID only	Entra-joined session hosts; requires FSLogix cloud cache or Azure Files

Network Considerations¶

Session hosts require outbound HTTPS (443) to Azure for AVD broker, Entra ID, and Windows Update endpoints.
RDP traffic from clients terminates at the AVD gateway in Azure; no inbound firewall rules needed on-premises.
SMB traffic for FSLogix (port 445) between session hosts and SOFS stays on the local network.
Use a dedicated storage/management VLAN for intra-cluster and SOFS traffic.
DNS must resolve both Azure endpoints and on-premises names from session-host VMs.

Storage Sizing Guidance¶

User Count	FSLogix VHD Size	Recommended SOFS CSV
Up to 100	30 GB / user	~3 TB usable
100 – 500	30 GB / user	~15 TB usable
500+	30 GB / user	Scale horizontally

Operational Baseline¶

Canonical configuration contract is config/variables.yml validated by config/schema/variables.schema.json.
Bicep is the strongest direct path; Terraform, ARM, PowerShell, and Ansible consume mapped/derived values.
Monitoring is required: host pool, application group, and workspace diagnostics route to Log Analytics.
Identity is required: role assignments for AVD users and VM login groups are managed as code.
FSLogix profile settings are configured post-provisioning (or extension-based) and validated in test scenarios.

Reference docs:

docs/reference/variable-mapping.md
docs/reference/tool-parity-matrix.md
docs/reference/phase-ownership.md
docs/reference/monitoring-queries.md
