FSLogix Integration

FSLogix profile containers are the only persistent user state in this architecture. Every other component — session hosts, control plane, networking — can be rebuilt from IaC. Profile containers cannot. This makes FSLogix design, sizing, and DR the most operationally consequential decisions in an Azure Local AVD deployment.

---

Profile Container Model Selection

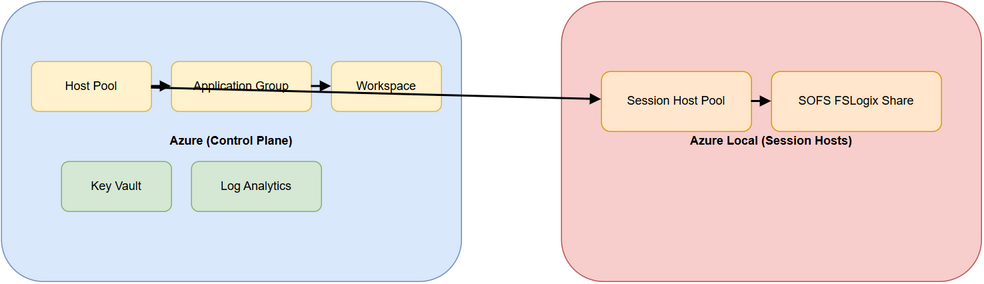

Diagram source

Draw.io source: docs/assets/diagrams/avd-fslogix-profile-selection.drawio. Export → PNG → docs/assets/images/avd-fslogix-profile-selection.png.

Two container delivery models are supported. The choice is permanent for a given host pool — switching from VHDX on SOFS to Cloud Cache requires re-mounting every active profile container against the new location, which is a maintenance window operation.

VHDX on SMB (SOFS) — Recommended Default

The session host mounts the user's profile VHDX directly from the SOFS SMB share using Kerberos authentication. No cloud dependency in steady state — if Azure is unavailable, profiles continue to mount as long as the on-premises SOFS is reachable.

Characteristic	Detail
Authentication	Kerberos via AD DS — automatic, no configuration
Write path	Session host → SMB3 → SOFS CSV volume
Write amplification	1× — writes go to one location
Failover	SOFS guest cluster handles node-level failures automatically
Azure dependency	None during steady-state profile I/O
Profile locking	VHDX locked to one session (pooled) or concurrent R/W (personal)

Why Kerberos + SOFS is the default: When a user signs in, frxsvc.exe on the session host performs the following sequence:

1. Resolve the SOFS access point (\\sofs-access-point\fslogixprofiles) via DNS
2. Obtain a Kerberos TGS ticket for the SOFS computer account using the user's existing AD session
3. Open an SMB3 session to the SOFS share
4. Locate or create the user's profile directory (%username%_%sid% or %sid%_%username% with FlipFlop enabled)
5. Attach the VHDX and mount it as the user's profile root

All 5 steps use credentials already in the user's Kerberos token — no storage keys, no SAS tokens, no additional auth flows. If any step fails, FSLogix falls back to a local temporary profile and logs event IDs in Microsoft-FSLogix-Apps/Operational. The user gets a blank desktop. This is the failure mode to monitor for.

Use VHDX on SOFS when: you have an on-premises AD DS domain (or hybrid Entra ID), the SOFS guest cluster is deployed, and your primary concern is operational simplicity and predictable performance.

---

Cloud Cache (CCDLocations) — DR and Entra-only Scenarios

Cloud Cache replaces VHDLocations with CCDLocations. FSLogix maintains a local read/write cache on the session host's OS disk and asynchronously flushes writes to all configured cloud providers (Azure Files, Azure Blob).

2–3× write amplification

Every profile write is written to the local cache AND flushed to every CCDLocations provider before sign-out completes. During logon storms, flush latency accumulates. Monitor the CCDWriteBehindDelay registry value and set it conservatively (default: 1000 ms). If flush does not complete before sign-out, you risk cache/cloud divergence.

Characteristic	Detail
Authentication	Azure Files: Kerberos via Entra Kerberos or storage account key; Blob: SAS or managed identity
Write path	Session host local cache → async flush to each CCDLocations provider
Write amplification	2–3× (local + all providers)
Failover	If a cloud provider is unreachable, reads serve from local cache; sign-out flush retries
Azure dependency	Requires reachable Azure storage endpoint at sign-out
SOFS dependency	None — eliminates on-premises profile storage entirely

CCDLocations registry value format (Azure Files example):

type=smb,connectionString=\\<storage-account>.file.core.windows.net\<share>;
type=smb,connectionString=\\<dr-storage-account>.file.core.windows.net\<share>

Multiple providers are separated by ;. Profile reads are served from the first healthy provider in the list.

Use Cloud Cache only when: there is no on-premises AD DS, or you need active-active multi-site profile redundancy and have accepted the write amplification cost.

---

Container Model Decision Matrix

Factor	VHDX on SOFS	Cloud Cache
On-premises AD DS available	✅ (Recommended)	✅ (Unnecessary complexity)
Entra-only session hosts	❌ (Kerberos requires AD)	✅ Required
Multi-site profile DR	⚠ (Needs SOFS replication)	✅ Built-in
Steady-state write performance	✅ 1× amplification	⚠ 2–3× amplification
Azure network outage tolerance	✅ No impact	⚠ Sign-out flush fails
Operational complexity	✅ Low	⚠ High

---

Sizing and Capacity Planning

Profile Size by User Type

Profile size depends on what applications write to the profile and whether Office cache is included (ODFC container separates this). Start with the baselines below and measure growth after 30 days in production.

User Type	Base Profile Size	With ODFC Container	Notes
Light (web, email, Teams-light)	10–15 GB	5–10 GB ODFC	Outlook cache dominates if not using ODFC
Knowledge worker (Outlook, Teams, Office)	20–30 GB	10–20 GB ODFC	OST file is the largest single item
Power user (dev, data, thick client apps)	30–50 GB	15–30 GB ODFC	AppData and %LOCALAPPDATA% grow rapidly

Recommendation: deploy a separate ODFC (Office Data File Container) to separate Outlook OST and Teams cache from the main profile container. This reduces main profile size by 30–50% and prevents Office cache growth from filling the profile volume.

Required Capacity Formula

$$ Required\ Capacity = (Users \times Profile\ Size) \times 1.4 $$

The 1.4× multiplier accounts for: - 30% free space buffer (required — VHDX dynamic expansion needs headroom) - 10% metadata and SOFS overhead

Examples:

User Count	Profile Size	Calculation	Required Usable Capacity
100 users	30 GB	100 × 30 × 1.4	4.2 TB
300 users	30 GB	300 × 30 × 1.4	12.6 TB
500 users	30 GB	500 × 30 × 1.4	21.0 TB
500 users	30 GB main + 15 GB ODFC	500 × 45 × 1.4	31.5 TB (two volumes)

Do not thin-provision below the 30% buffer

FSLogix VHDX containers use dynamic expansion. When the underlying CSV volume fills past ~85% capacity, dynamic expansion stalls and the VHDX goes read-only. Users immediately lose their active desktop session. The session host cannot sign the user out cleanly because the profile is read-only. Plan for 30% free space headroom at all times and set CSV volume alerts at 70% full.

Monitoring VHDX Growth

After 30 days of production use, review actual VHDX sizes:

Get-ChildItem '\\sofs-access-point\fslogixprofiles' -Recurse -Filter '*.vhdx' |
    Select-Object Name, @{N='Size_GB';E={[math]::Round($_.Length/1GB,1)}} |
    Sort-Object Size_GB -Descending |
    Select-Object -First 20

If median VHDX size is significantly above baseline, investigate: Teams cache, Outlook OST, or %LOCALAPPDATA%\Packages (UWP app state). These are the most common causes of unexpected profile growth.

---

SOFS and SMB Configuration

SOFS infrastructure

The SOFS guest cluster design, CSV volumes, and deployment phases are covered in the companion repository. See: azurelocal-sofs-fslogix.

SOFS guest cluster deployment phases — from the companion repository. Phases 1–4 must complete before FSLogix shares are available.

CSV Volume Layout

Dedicate separate CSV volumes to different profile types. Mixing profile types on a single volume creates a single point of capacity exhaustion.

Volume	Purpose	Sizing Driver
CSV-Profiles	Main FSLogix VHDX containers	Users × profile size × 1.4
CSV-ODFC	Office Data File Containers (Outlook OST, Teams)	Users × ODFC size × 1.4
CSV-Images	Golden VM images (not profile storage)	Image count × image size × 1.2

Do not place golden images and profile containers on the same CSV volume. Image updates and profile I/O have different access patterns — co-locating them causes I/O interference during patching windows.

SMB Share Configuration

Create the FSLogix share as a continuously available SMB share. Continuous availability enables transparent failover when the SOFS cluster moves the share between nodes — session hosts reconnect automatically without profile mount failures.

New-SmbShare -Name 'fslogixprofiles' `
    -Path 'C:\ClusterStorage\CSV-Profiles\Profiles' `
    -ContinuouslyAvailable $true `
    -FolderEnumerationMode AccessBased `
    -Description 'FSLogix Profile Containers'

SMB Multichannel: enabled by default on Windows Server 2019+. Multichannel uses multiple network paths between session hosts and SOFS — if session hosts have multiple NICs or RSS-capable NICs, Multichannel automatically spreads I/O across channels. Verify it is active:

Get-SmbMultichannelConnection -ServerName 'sofs-access-point'

SMB encryption: disable unless required by policy. SMB3 encryption adds ~10–15% CPU overhead on both the session host and SOFS. On a LAN segment inside the same rack, the threat model rarely justifies the performance cost. If data-in-transit encryption is required, enforce it at the network layer (802.1AE / MACsec) rather than SMB.

Share Permissions

FSLogix creates per-user subdirectories automatically when a user first signs in. The share permissions must allow this without granting users access to each other's directories.

Share-level permissions (CIFS ACL):

Principal	Permission	Reason
Authenticated Users	Change	Allows FSLogix to create the per-user directory and VHDX
BUILTIN\Administrators	Full Control	Admin access for recovery operations

NTFS permissions on the share root:

Principal	Applies To	Permission	Reason
CREATOR OWNER	Subfolders and files only	Full Control	User owns their own directory
BUILTIN\Administrators	This folder, subfolders, files	Full Control	Administrative recovery
SYSTEM	This folder, subfolders, files	Full Control	FSLogix service account
Authenticated Users	This folder only	List Folder / Read Attributes	Allows FSLogix to navigate to the root to create/find the user directory; does NOT grant access to other users' subfolders

Important

Do not grant Authenticated Users read/write on subfolders — this allows users to browse and access other users' profile directories. The This folder only scope on the root is the critical constraint.

---

FSLogix Registry Baseline

Key Explanations

Understand what each registry value does before deploying. Defaults that are wrong for your environment cause silent failures at logon.

Registry Value	Type	Recommended Value	Why
Enabled	DWORD	1	Activates FSLogix; without this, no profiles are redirected
DeleteLocalProfileWhenVHDShouldApply	DWORD	1	If a stale local profile exists (from a failed prior mount), delete it and use the VHDX; prevents split-brain profile state
FlipFlopProfileDirectoryName	DWORD	1	Names container directory %SID%_%Username% instead of %Username%_%SID% — makes directories sort by SID, which is stable across username renames
IsDynamic	DWORD	1	VHDX grows dynamically up to SizeInMBs; set to 0 for fixed-size VHDX (wastes space but eliminates expansion I/O spikes)
SizeInMBs	DWORD	30720	Maximum VHDX size in MB (30 GB). Set this larger than you need now — shrinking a VHDX requires offline operations
VolumeType	String	vhdx	Use VHDX (default). VHD format is limited to 2 TB and lacks 4K alignment — no reason to use it
VHDLocations	MultiString	\\sofs-access-point\fslogixprofiles	Primary profile share path. Add a second path for failover; FSLogix tries each in order
PreventLoginWithFailure	DWORD	1	Block sign-in entirely if the profile VHDX cannot mount, rather than falling back to a local temporary profile. Prevents users from working in an unprotected temporary session without knowing it
PreventLoginWithTempProfile	DWORD	1	Companion to above — ensures temporary profiles are blocked at the policy level

Set PreventLoginWithFailure = 1 in production

The default (0) allows a local temporary profile when the VHDX mount fails. Users working in temporary profiles lose all session state at sign-out. They will not notice — until three hours of work disappears. Block the sign-in instead and fix the mount failure.

Profile Registry Keys

$base = 'HKLM:\SOFTWARE\FSLogix\Profiles'
New-Item -Path $base -Force | Out-Null

$values = @(
    @{ Name = 'Enabled';                             Type = 'DWord';       Value = 1 },
    @{ Name = 'DeleteLocalProfileWhenVHDShouldApply'; Type = 'DWord';       Value = 1 },
    @{ Name = 'PreventLoginWithFailure';              Type = 'DWord';       Value = 1 },
    @{ Name = 'PreventLoginWithTempProfile';          Type = 'DWord';       Value = 1 },
    @{ Name = 'FlipFlopProfileDirectoryName';         Type = 'DWord';       Value = 1 },
    @{ Name = 'IsDynamic';                           Type = 'DWord';       Value = 1 },
    @{ Name = 'SizeInMBs';                           Type = 'DWord';       Value = 30720 },
    @{ Name = 'VolumeType';                          Type = 'String';      Value = 'vhdx' },
    @{ Name = 'VHDLocations';                        Type = 'MultiString'; Value = '\\sofs-access-point\fslogixprofiles' }
)

foreach ($v in $values) {
    New-ItemProperty -Path $base -Name $v.Name -PropertyType $v.Type -Value $v.Value -Force | Out-Null
}

# Ansible
- name: Configure FSLogix registry baseline
  ansible.windows.win_regedit:
    path: HKLM:\SOFTWARE\FSLogix\Profiles
    name: "{{ item.name }}"
    data: "{{ item.data }}"
    type: "{{ item.type }}"
    state: present
  loop:
    - { name: Enabled,                             type: dword,       data: 1 }
    - { name: DeleteLocalProfileWhenVHDShouldApply, type: dword,       data: 1 }
    - { name: PreventLoginWithFailure,              type: dword,       data: 1 }
    - { name: PreventLoginWithTempProfile,          type: dword,       data: 1 }
    - { name: FlipFlopProfileDirectoryName,         type: dword,       data: 1 }
    - { name: IsDynamic,                           type: dword,       data: 1 }
    - { name: SizeInMBs,                           type: dword,       data: 30720 }
    - { name: VolumeType,                          type: string,      data: vhdx }
    - { name: VHDLocations,                        type: multistring, data: '\\sofs-access-point\fslogixprofiles' }

ODFC (Office Data File Container) Keys

Deploy a separate ODFC container to isolate Outlook OST and Teams cache from the main profile. This prevents Office cache growth from filling the profile VHDX.

$odfc = 'HKLM:\SOFTWARE\Policies\FSLogix\ODFC'
New-Item -Path $odfc -Force | Out-Null

$odfc_values = @(
    @{ Name = 'Enabled';        Type = 'DWord';       Value = 1 },
    @{ Name = 'IsDynamic';      Type = 'DWord';       Value = 1 },
    @{ Name = 'SizeInMBs';      Type = 'DWord';       Value = 20480 },  # 20 GB
    @{ Name = 'VolumeType';     Type = 'String';      Value = 'vhdx' },
    @{ Name = 'VHDLocations';   Type = 'MultiString'; Value = '\\sofs-access-point\fslogixodfc' },
    @{ Name = 'IncludeTeams';   Type = 'DWord';       Value = 1 },
    @{ Name = 'IncludeOneDrive';Type = 'DWord';       Value = 1 }
)

foreach ($v in $odfc_values) {
    New-ItemProperty -Path $odfc -Name $v.Name -PropertyType $v.Type -Value $v.Value -Force | Out-Null
}

---

Antivirus and Performance Exclusions

Wrong exclusions cause profile corruption

If Defender scans an attached VHDX while FSLogix is writing to it, the scan can lock the file mid-write and corrupt the container. The user cannot sign in until the VHDX is recovered or restored from backup. Apply the exclusions below before rolling out to production.

These exclusions must be configured via Group Policy or Intune — do not apply them manually to individual session hosts (they will be lost on re-image).

Process Exclusions

Process	Path	Reason
frxsvc.exe	%ProgramFiles%\FSLogix\Apps\frxsvc.exe	FSLogix service — all profile I/O
frxrobocopy.exe	%ProgramFiles%\FSLogix\Apps\frxrobocopy.exe	FSLogix internal robocopy helper
frxccds.exe	%ProgramFiles%\FSLogix\Apps\frxccds.exe	Cloud Cache daemon (if using CCDLocations)

Path Exclusions

Path	Reason
\\sofs-access-point\fslogixprofiles	Share root — prevents scanning of container files over network
%ProgramData%\FSLogix	Local FSLogix state and log directory
%TEMP%\*\*.VHD	Temporary VHD attach points
%TEMP%\*\*.VHDX	Temporary VHDX attach points
%Windir%\TEMP\*\*.VHD	System temp VHD attach points
%Windir%\TEMP\*\*.VHDX	System temp VHDX attach points

Extension Exclusions

Extension	Reason
.VHD	VHD container files — do not scan attached VHDs
.VHDX	VHDX container files
.VHD.lock	FSLogix lock files
.VHD.meta	FSLogix metadata files
.VHD.metadata	FSLogix metadata files

Always validate the final exclusion set with your security operations team before applying to production. The goal is to exclude FSLogix I/O paths from real-time scanning, not to blanket-exclude the entire session host from antivirus protection.

---

DR and Backup Strategy

Profile containers are not recoverable from IaC — they are user data. Every other component in this architecture can be rebuilt in under an hour. Profile containers require a backup restore. Plan for this explicitly.

Failure Scenarios and Recovery

Scenario	User Impact	Recovery Method	Estimated RTO
Single SOFS VM failure	None — S2D mirror continues	Automatic (S2D rebuild when VM recovers)	0 min impact
Two SOFS VMs fail simultaneously	Profiles inaccessible	Recover ≥1 SOFS VM; S2D rebuilds automatically	15–30 min
FSLogix VHDX locked after crash	Individual user cannot sign in	Delete .VHD.lock file from share; restart frxsvc on session host	5 min
Profile VHDX corrupted	Individual user gets temp profile	Mount VHDX offline: chkdsk /f; if not recoverable, restore from backup	30 min – 2 hr
CSV volume full	All profiles on volume go read-only	Free space or expand the CSV; restart frxsvc on all affected session hosts	15–30 min
Complete SOFS cluster loss	All profiles inaccessible	Restore SOFS from backup; then restore VHDX from volume backup	2–8 hr

Backup Minimum Controls

Profile backups are not optional for production workloads:

• Daily VSS snapshot of each FSLogix CSV volume via Windows Server Backup or Azure Backup for Arc VMs
• Retain minimum 30 daily snapshots (covers month-end scenarios where corruption goes unnoticed for weeks)
• Store backup data on a separate storage system — not on the same SOFS cluster serving the profiles
• Quarterly restore test: pick 3 representative user accounts, restore their VHDX to a test share, sign in with a test session host, verify profile integrity

Stale Lock File Recovery

When a session host crashes mid-session, FSLogix may leave a .VHD.lock file. The user cannot sign in anywhere until the lock is cleared.

# Find all stale lock files (no associated session is active)
Get-ChildItem '\\sofs-access-point\fslogixprofiles' -Recurse -Filter '*.VHD.lock' |
    Select-Object FullName, LastWriteTime

# Remove a specific lock file after confirming no active session
Remove-Item '\\sofs-access-point\fslogixprofiles\user1_S-1-5-21-...\Profile_user1.VHDX.lock' -Force

After removing the lock file, the user can sign in on any session host and FSLogix will re-acquire the lock on the VHDX.

---

Validation Tests

Run these checks after Phase 7 (FSLogix configuration) and again after any session host or FSLogix agent update.

Post-Deployment Checklist

Test	Pass Condition	How to Check
Profile VHDX created on first sign-in	%username%_%SID%\Profile_%username%.VHDX exists on share	Get-ChildItem \\sofs-access-point\fslogixprofiles
Profile persists across sign-outs	Desktop/documents state preserved after sign-out and re-sign-in on a different host	Manual user test
No sign-in fallback to temp profile	No Microsoft-FSLogix-Apps/Operational Event ID 26 (temp profile created)	Event log query (see below)
VHDX mounted with correct user NTFS ACL	Only the owning user has access inside their profile directory	icacls \\sofs-access-point\fslogixprofiles\%username%_%SID%
SMB Multichannel active	At least 2 channels visible per session host connection	Get-SmbMultichannelConnection -ServerName sofs-access-point
AV exclusions in place	No FSLogix-related scan events in Defender telemetry	Check Defender Advanced Hunting

Key FSLogix Event IDs

Event ID	Log	Meaning	Action
2	Operational	Profile successfully attached	Expected — monitor rate
7	Operational	Profile successfully detached	Expected
26	Operational	Temporary profile created	Investigate immediately — VHDX mount failed
27	Operational	Profile VHDX failed to attach	Check share path, Kerberos, share permissions
31	Operational	Profile locked — waiting	Another session holds the VHDX lock
52	Operational	VHDX size limit reached	User's container is full — expand SizeInMBs

Event Log Query

# Check for errors and warnings in FSLogix operational log
Get-WinEvent -LogName 'Microsoft-FSLogix-Apps/Operational' -MaxEvents 200 |
    Where-Object { $_.LevelDisplayName -in 'Error', 'Warning' } |
    Select-Object TimeCreated, Id, Message |
    Format-List

# Check specifically for temporary profile events (Event ID 26)
Get-WinEvent -LogName 'Microsoft-FSLogix-Apps/Operational' -MaxEvents 500 |
    Where-Object { $_.Id -eq 26 } |
    Select-Object TimeCreated, Message

SMB Latency Baseline

Capture an SMB latency baseline immediately after deployment, before user load. Use this as the reference for future investigations.

# Measure round-trip latency to the SOFS access point
1..10 | ForEach-Object {
    $start = Get-Date
    $null = Test-Path '\\sofs-access-point\fslogixprofiles'
    $elapsed = (Get-Date) - $start
    [PSCustomObject]@{ Iteration = $_; LatencyMs = $elapsed.TotalMilliseconds }
} | Format-Table -AutoSize

Expected: < 2 ms average on a co-located LAN segment. If you see > 5 ms consistently, investigate network routing — the session host may be traversing a router to reach the SOFS.

---

What's Next

Topic	Link
Session host topology, identity, and network design	Detailed Design
SOFS guest cluster infrastructure and deployment	azurelocal-sofs-fslogix
FSLogix official reference	Microsoft FSLogix docs
Phase ownership matrix	Phase Ownership
Monitoring queries for FSLogix errors	Monitoring Queries
